CytoSMART™ Lux3 FL

Got a Question? Request a Callback

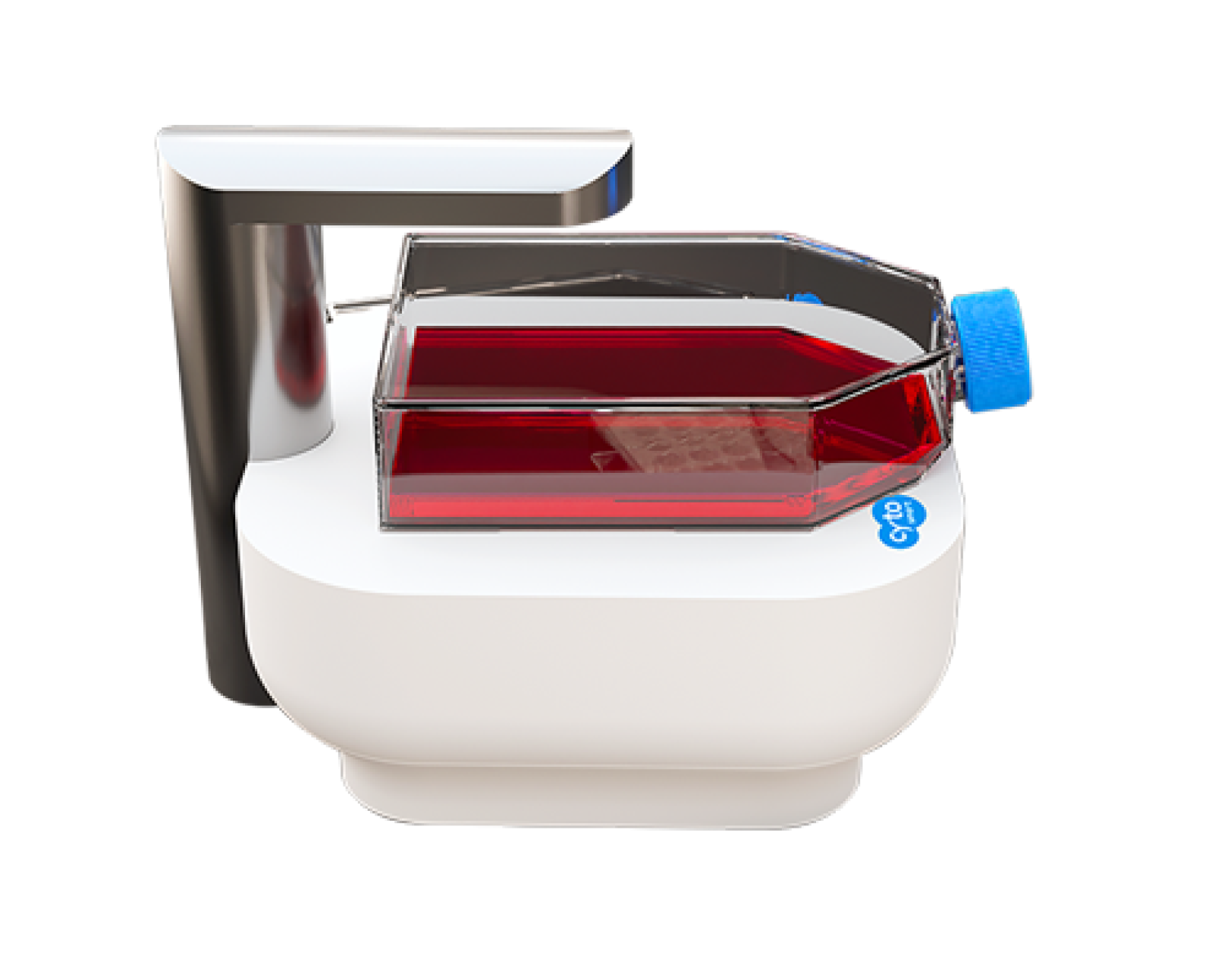

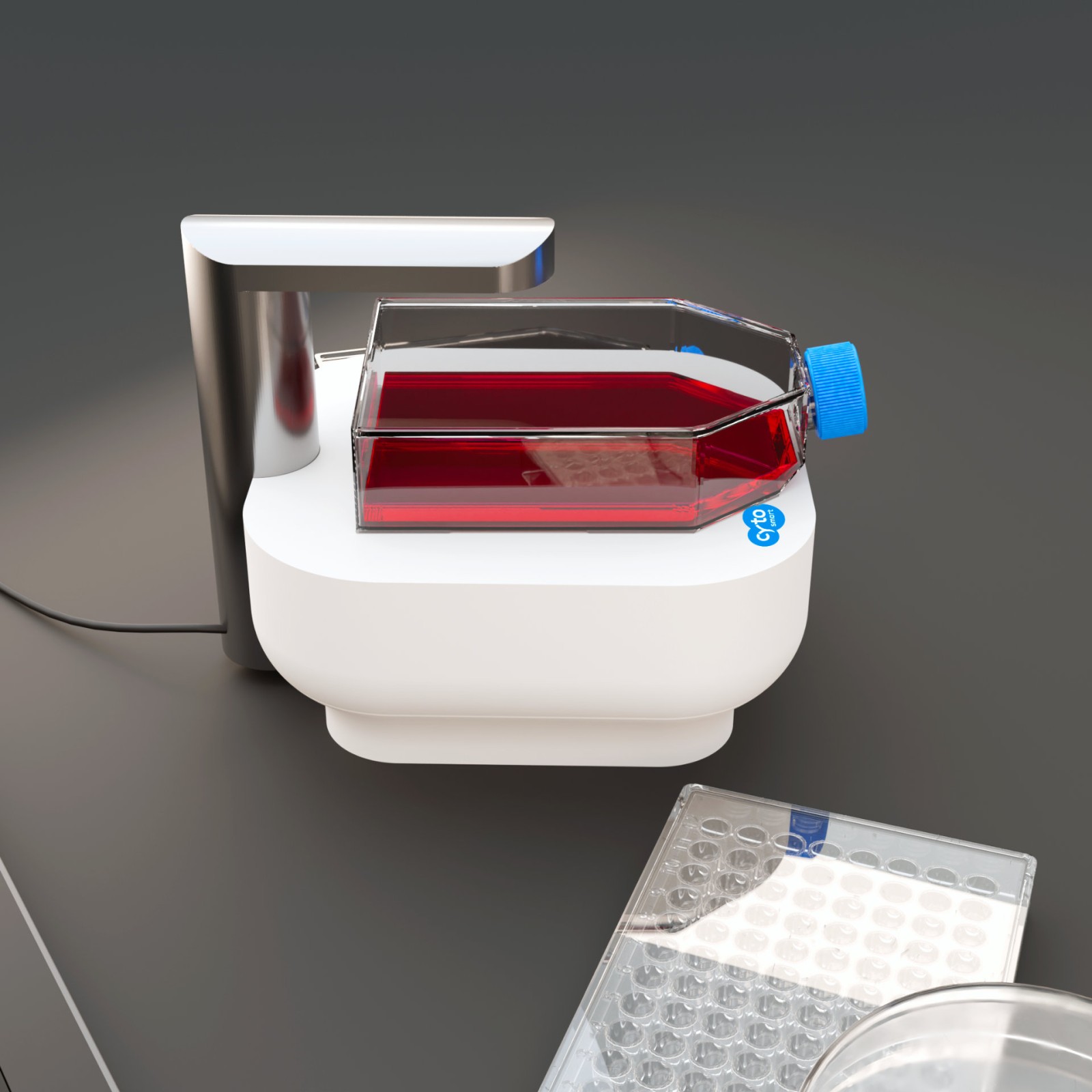

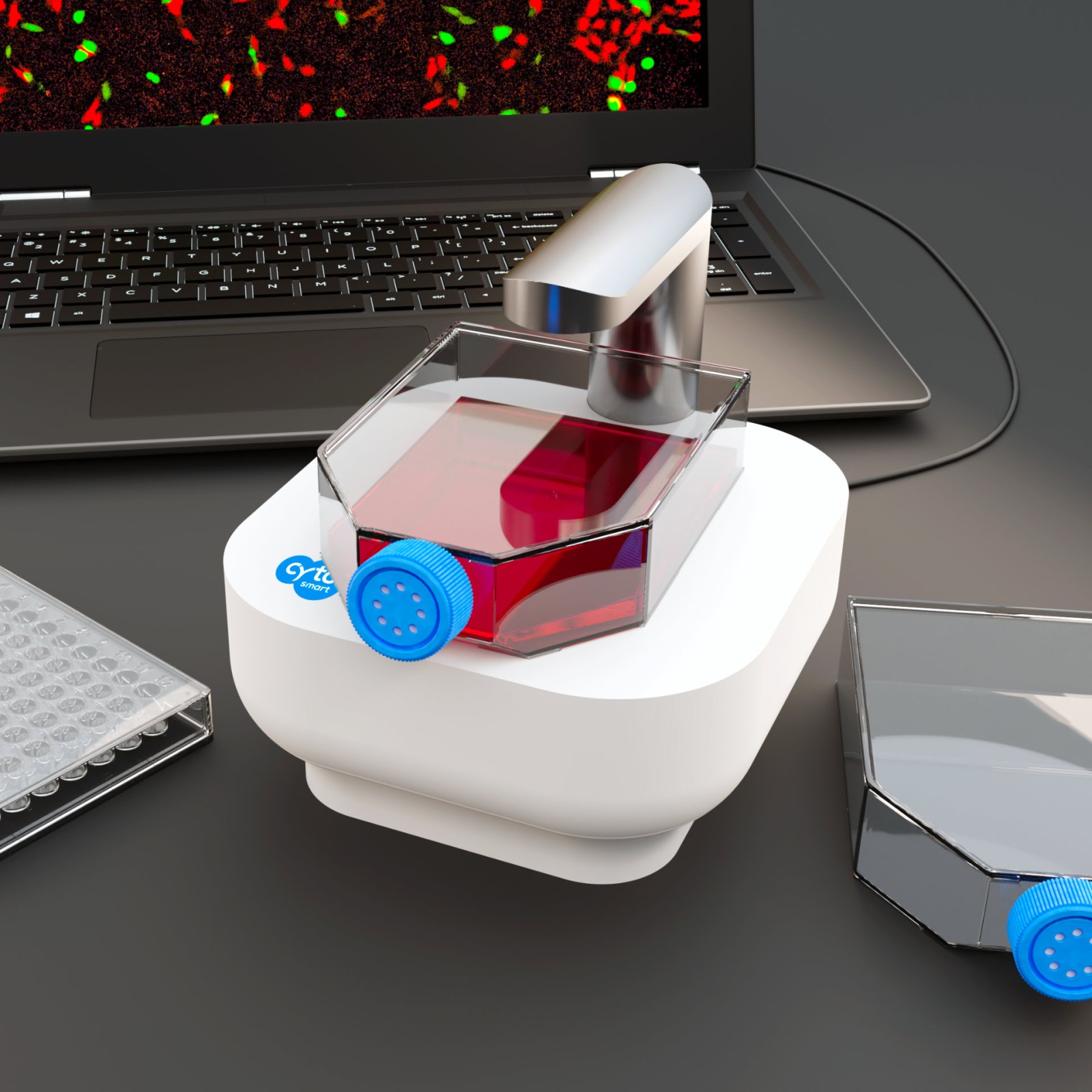

CytoSMART Lux3 FL with flask

Automated fluorescence imaging inside your Whitley Hypoxystation

Rollover Image to Zoom

Technical Specification:

  • Channels: Brightfield - green and red fluorescence
  • Magnification: 10X fixed objective, 20X digital zoom
  • Camera: 6.4 MP CMOS
  • Data Formats: JPG, XLSX. MP4
  • Image Size: 2072 x 2072 pixels
  • Field of View: 1.45 x 1.45mm
  • Computer software requirements: Windows 10
  • Fluorescence filters:
  • Green - Excitation: 452/45 nm; Emission: 512/23 nm
  • Red - Excitation: 561/14 nm; Emission: 630/90 nm

View Specification

CytoSMART are currently offering a grant, allowing eligible students and researchers to apply to use a live-cell imaging device for up to 18 months. Applications close 12/02/21. Learn more here.

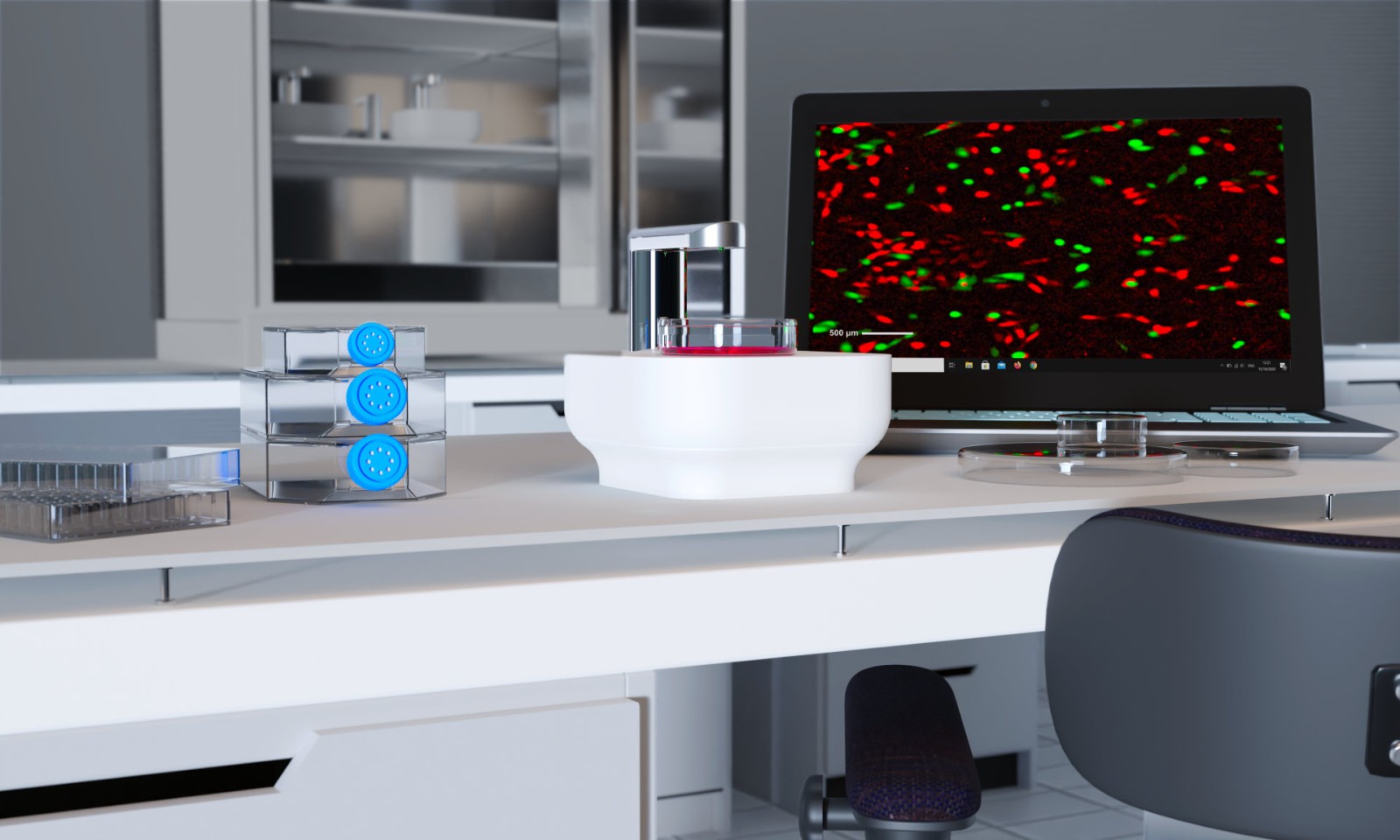

The CytoSMART Lux3 FL is a small live-cell imaging microscope equipped with one brightfield and two fluorescent channels (green and red). The device enables researchers to unravel cellular processes in real-time, while the cells are kept in a controlled environment inside a Whitley Hypoxystation. This fluorescence live-cell imager allows users to track dynamic cellular processes with high specificity by taking high-quality images to create real-time time-lapse movies.

Currently, fluorescent labelling is mostly used as an end-point measurement. However, time-lapse imaging of live cells can give much more information about biological processes. By using automated imaging at regular time intervals, the temporal resolution of the fluorescent data is increased, leading to even more relevant data about the cellular processes. In this way, researchers can not only determine if a certain process has occurred, but also when it occurred and at what speed.

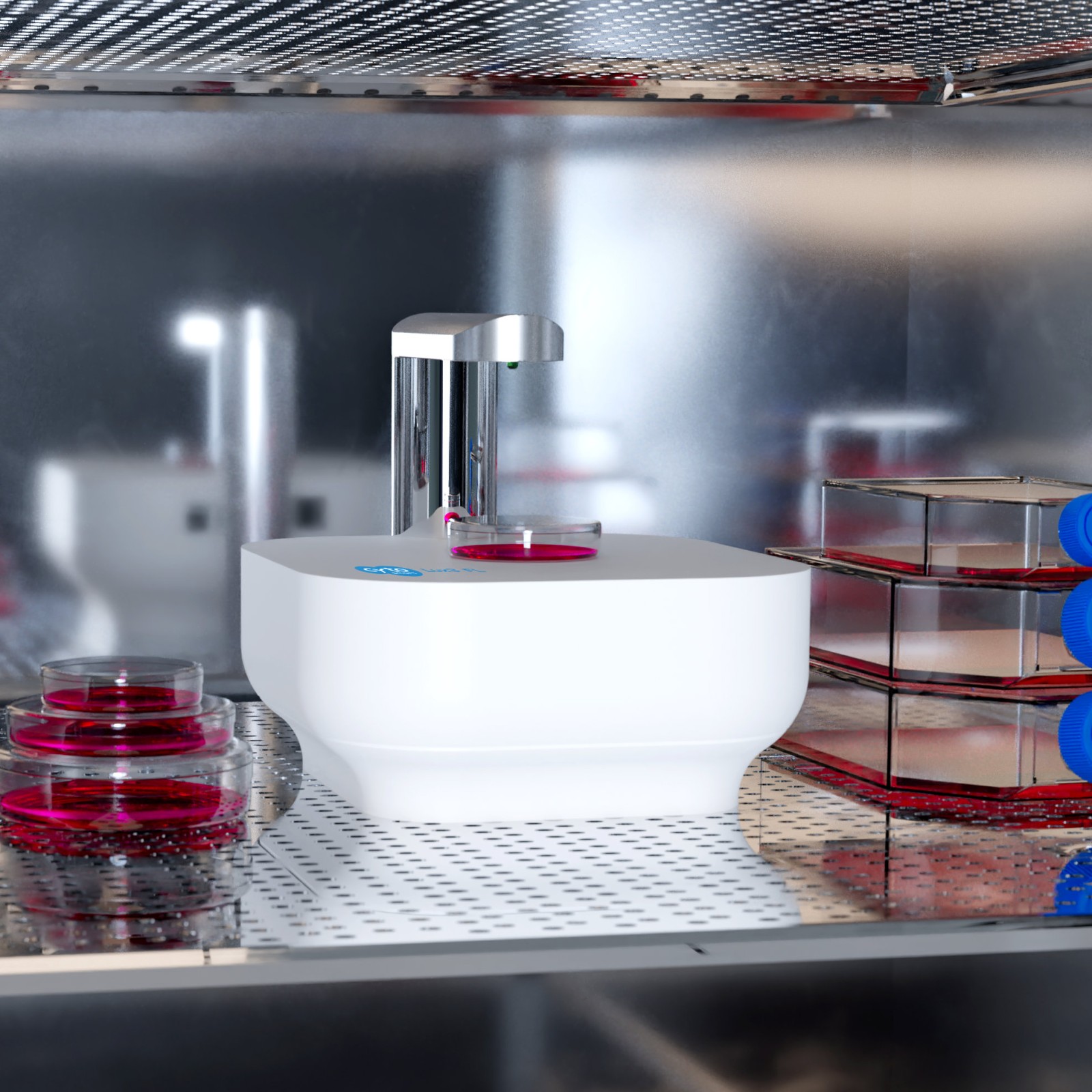

Because the Lux3 FL fits easily inside a workstation, time-lapse movies can be made from inside your Hypoxystation without disturbing your cells. The clips can be immediately accessed and analysed remotely via CytoSMART Cloud, providing real-time updates on your cell culture experiments.

A variety of vessels can be used on your Lux3 FL, including well-plates, Petri dishes, culture flasks, microfluidic chips and custom culture vessels.

Applications for use include: drug discovery; tissue engineering; immunology; immunotherapy; cancer research.

Capable for use in: monitoring cell viability; determining transfection efficiency; investigating co-cultures and analysing cellular processes.

View Specification

Temperature Range
Operating Conditions: 5-40°C, 2-95% humidity
Dimensions (W/D/H mm)
166 / 140 / 135
Weight (lbs/kgs)
2.86 / 1.3
CytoSMART™ Lux2

CytoSMART™ Lux2 is a compact, inverted mini-microscope for brightfield live-cell imaging. It is used for confluence and assay experiments.
