M135 HEPA Workstation

A microaerobic workstation with extra height and depth

Rollover Image to Zoom

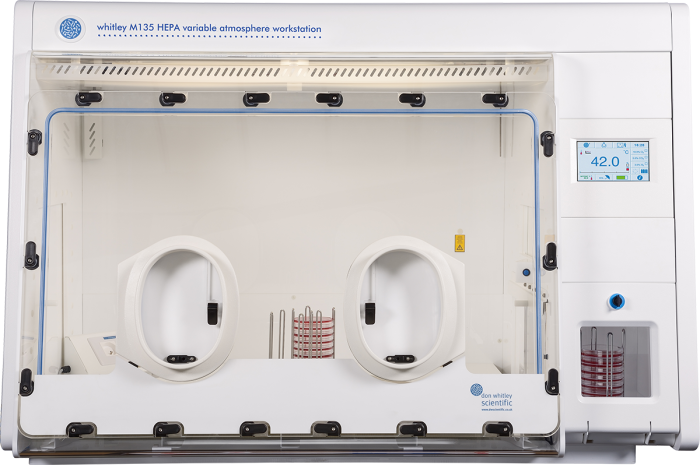

The M135 HEPA is a tall, wide, deep microaerobic chamber. It is a 4-gas system with built-in oxygen, carbon dioxide and hydrogen sensors. This allows users to programme precise gas concentrations, which is perfect for manipulating samples in a sustainable variable atmosphere environment. The Whitley M Range of workstations allows anoxic/anaerobic, microaerobic or hypoxic atmospheres to be created, if desired, without the need to change incoming gases.

Whitley M Range Workstations were originally designed for the study and isolation of microaerophilic organisms such as Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. However, due to the flexibility of the atmospheric control (from 0% to 20% oxygen), these systems are widely used for both microbiology and cell culture applications. As with our other microaerobic and anaerobic workstations, the Whitley M35 can be specified with the Whitley Automatic Humidification System. This system is especially beneficial in the cultivation of microaerophilic bacteria such as Campylobacter spp. Our own laboratory tests have indicated that Campylobacter colonies grow larger and exhibit more typical morphology when incubated in an atmosphere with elevated humidity (at least 75% RH).

The M155 HEPA has an internal volume of 900 litres and can accommodate a variety of items of equipment such as imaging devices, microscopes, plate readers, spiral platers, etc. It comes complete with the unique Whitley Internal HEPA Filtration System. All the atmosphere passes through the filter hundreds of times an hour, which ensures the chamber environment is cleaned quickly.

The generous internal height facilitates easy pipetting. All your work can be performed without removing your samples from the set environmental conditions and the entire chamber can be used as both working and incubation space.

With a rapid 16 litre airlock, there is no risk of compromising conditions inside the chamber (and it’s flushed with nitrogen as an additional cost saving).

DWS also offers two optional cooling methods for this workstation. A Refrigeration System could be useful if you are working with organisms that need low temperature incubation. Alternatively, the Heat Removal System allows the workstation to maintain ambient temperatures at all times.

A range of optional accessories, such as data logging and cable glands are available to tailor this workstation to your particular requirements.

  • Two patented oval ports enable you to work comfortably, gloved or bare handed.
  • Rather than use off-the-shelf HEPA filters, DWS has worked with one of the world's leading filter manufacturers to develop a filter specifically tailored to suit this workstation.
  • Levels of atmospheric cleanliness inside the workstation exceeds the requirements of ISO 14644 Class 3 (equivalent to Class 1 of the US Fed Std 209E Cleanroom Standards and exceeds the particle counts attained at rest’ (without an operator) of Grade A as set out in the GMP Guidelines). We can provide test results confirming particulate levels inside the workstation.
  • Fitted with a fan that circulates the internal atmosphere continuously - contributing to even temperature distribution and ensuring any internal particulate will be in motion.
  • A removable front enables the transfer of larger batches of samples or pieces of equipment for use inside the chamber.
  • Colour, touch screen control panel for ease of use and for visual display of parameters such as temperature, humidity and airlock cycle status.
  • Other options to tailor the workstation to your requirements include: single sample entry system; cable glands; shelves and data logging.

View Specification

Specifications

Capacity Litres
900.00
Port Airlock Capacity
40 x 90mm Petri dishes or 10 x 500ml Duran bottles
Airlock Size (litres)
16.00
Porthole System
Manual
Gas Supplies
H2 + N2 / CO2 / N2 / Air
Footswitch
Wireless
Internal Mains Sockets
Available
Storage Tray
Available
Inspection Lamp
Available
Single Sample Entry
Available
Refrigeration
Available
Data Logging
Available
Airlock Cycle Time (seconds)
60
Extra Cable Glands
Available
Microscope
Contact Us
Automatic Dehumidifier
Included
Automatic Humidifier
Available
Removable Front
Included
Trolley Available
Included
O2 Profiling
Available
Temperature Range
4°C above ambient up to 45°C
Touchscreen Control
Yes
Remote Access
Included
HEPA
As Standard
Dimensions (W/D/H mm)
1473 / 1056 / 1063
Weight (lbs/kgs)
382 / 175
Whitley M155 HEPA Workstation

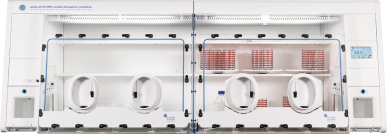

Need even more space - see the M155 HEPA for double the capacity
