Whitley H25 Hypoxystation

Micro environment. Major research.

Rollover Image to Zoom
  • Built-in rapid airlock allows items to be transferred into the workstation atmosphere in 20 seconds and the doors are interlocked so cannot be opened simultaneously.

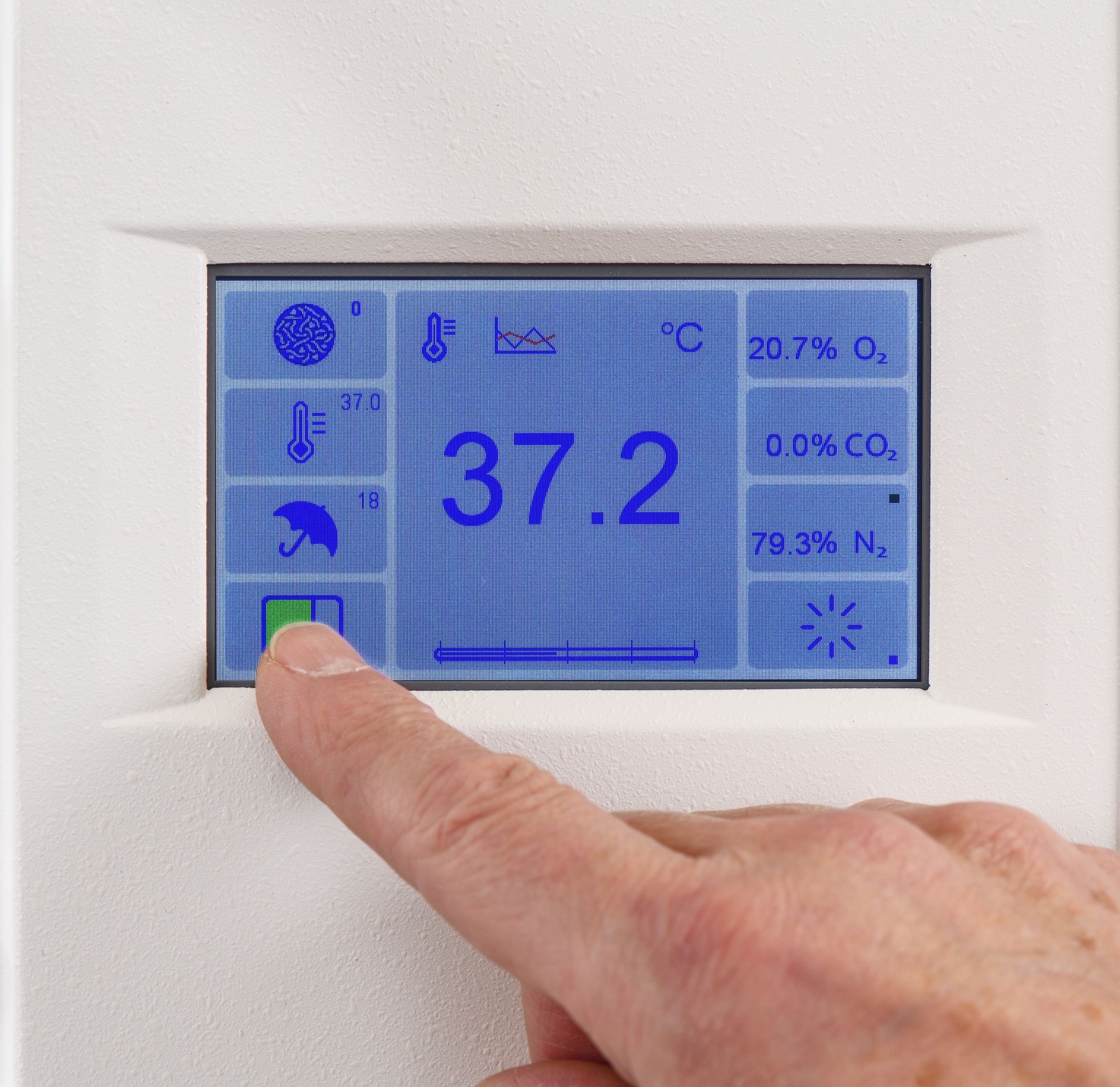

  • Colour, touchscreen control panel for ease of use and for visual display of parameters such as oxygen level, carbon dioxide level, temperature, humidity, and airlock cycle status.
  • Low gas consumption.
  • Fully integrated gas control avoids bulky add-on systems and reduces the need for additional bench space.
  • Optional 15cm single plate entry system fitted to the side of the workstation.
  • Optional data download facility and oxygen profiling.
  • Can be fitted with a range of cable glands and other options to tailor the workstation to your requirements.

View Specification

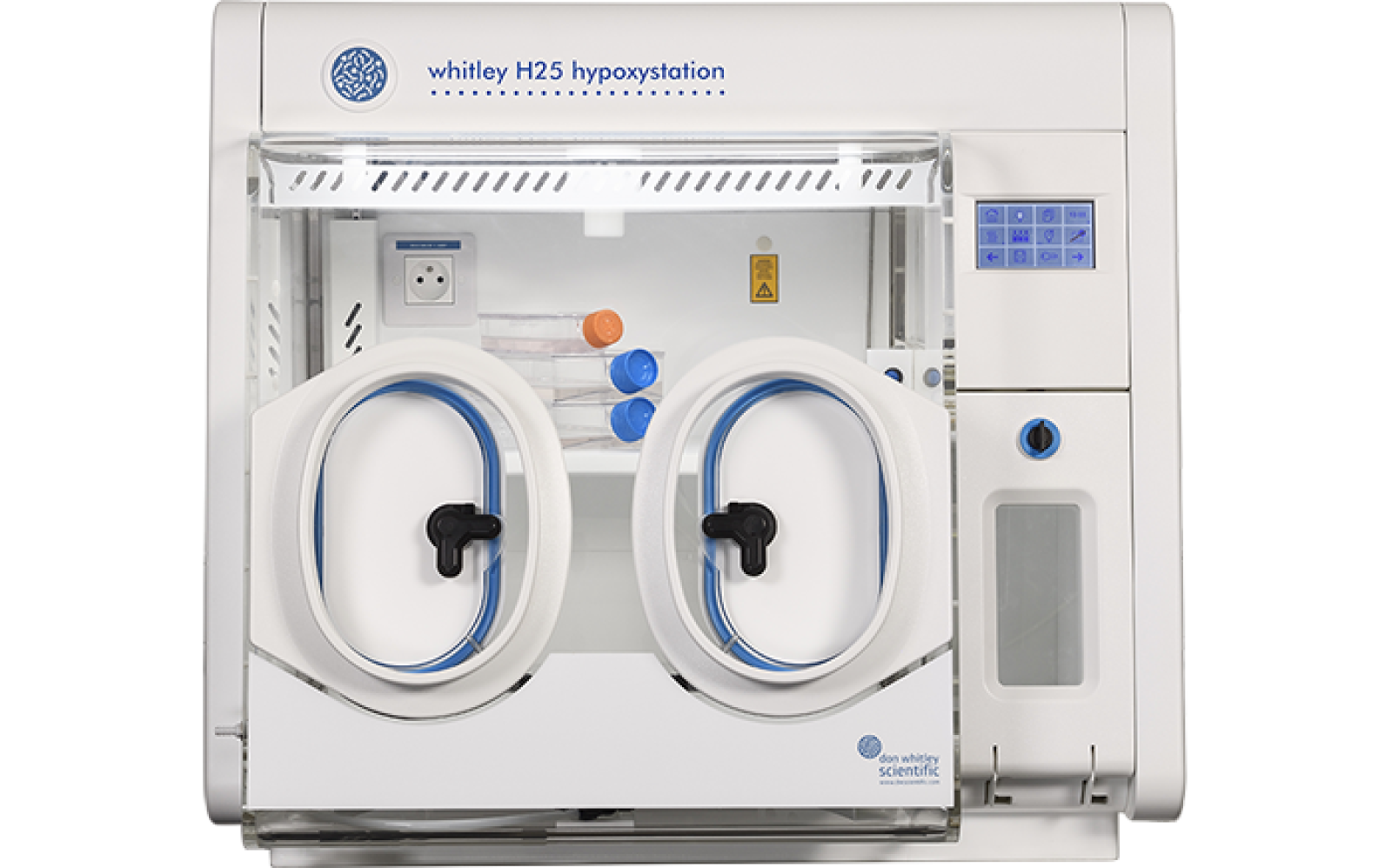

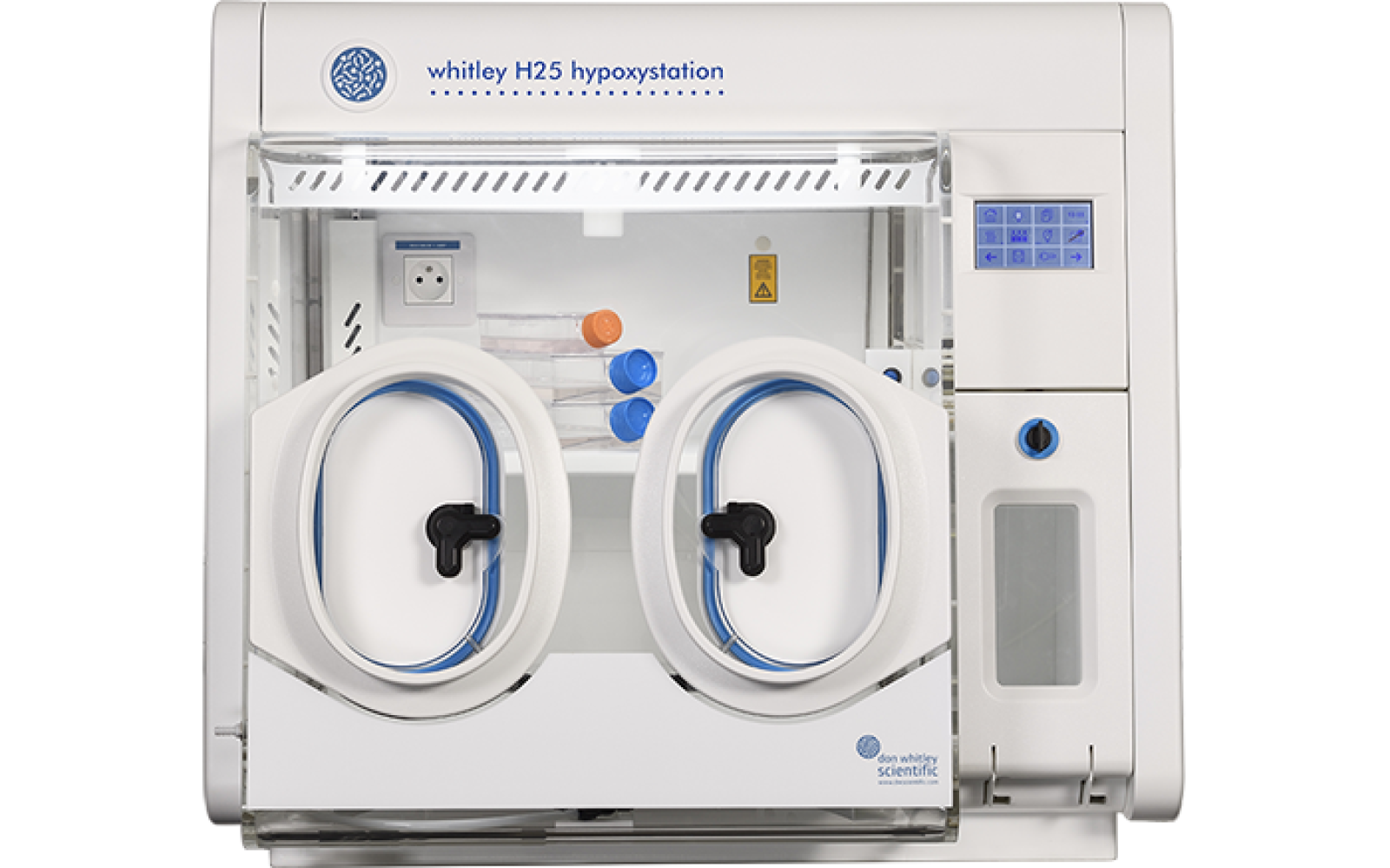

The H25 Hypoxystation creates hypoxic and anoxic conditions within a controlled and sustained workstation environment. For cell and tissue culture researchers who want a small chamber with stable conditions in which to accurately control oxygen, carbon dioxide, temperature and humidity, this workstation is ideal.

With the H25 you can control oxygen in 0.1% increments up to 20%; carbon dioxide in 0.1% increments up to 15%; and relative humidity up to 80%. This provides a great deal of flexibility in your research and confidence in your results.

This Hypoxystation can accommodate 145 x 96 well plates while still leaving more than adequate space to process samples. This workstation is equipped with sleeved ports and has a built-in, rapid airlock that can accommodate 3 x 500ml Duran bottles.

If you need to aspirate biological liquid waste from inside the chamber, order with a Vacuum Take-off Port and the Whitley AsPROvac for the perfect package.

View Specification

Capacity Litres
180.00
Airlock Size (litres)
6.00
Porthole System
Manual
Footswitch
Wireless
Auto Sleeve Gassing
Available

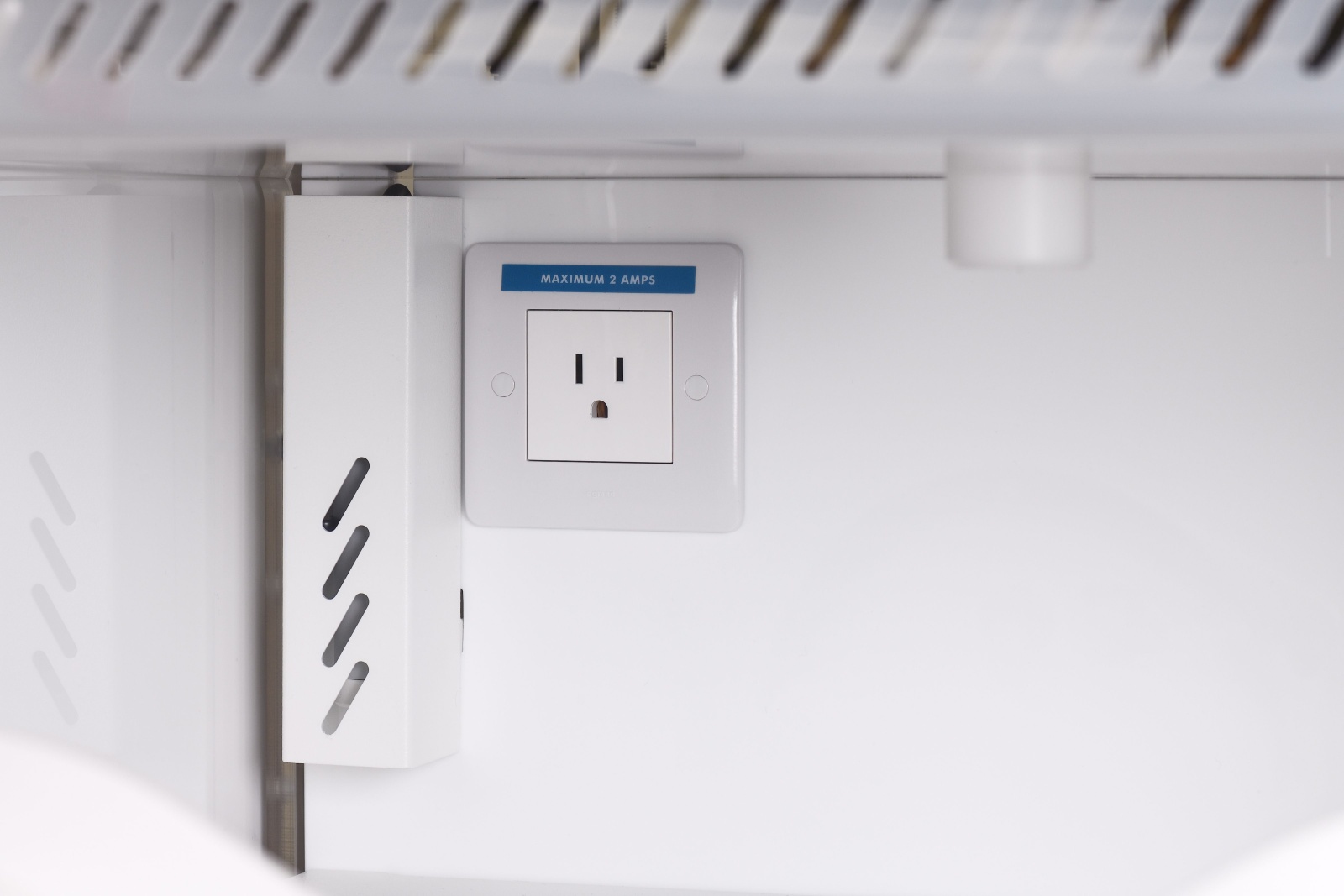

Internal Mains Sockets
Available
Inspection Lamp
Available
Single Sample Entry
Available
Data Logging
Available
Airlock Cycle Time (seconds)
20
Extra Cable Glands
Available
Removable Front
Unavailable
Trolley Available
Available
O2 Profiling
Available
Temperature Range
5°C above ambient to 45°C
Touchscreen Control
Yes
Remote Access
Included
Dimensions (W/D/H mm)
790 / 720 / 710
Weight (lbs/kgs)
163 / 74

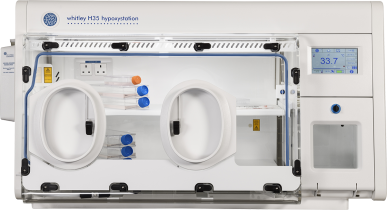

Whitley H35 Hypoxystation

But if this workstation is just too small for your requirements, have a look at our H35 Hypoxystation - which also has a larger airlock
