Whitley A45 Workstation

Got a Question? Request a Callback

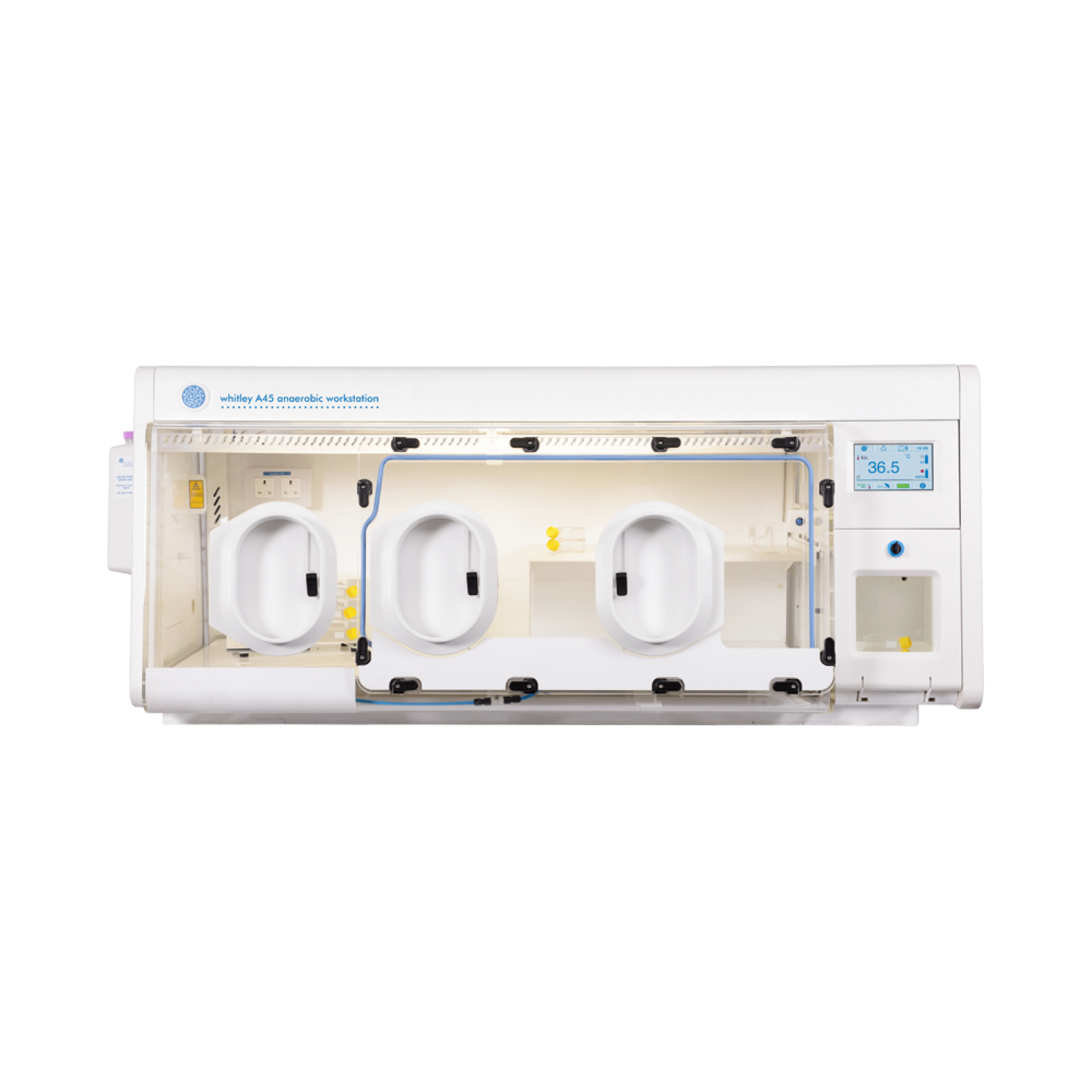

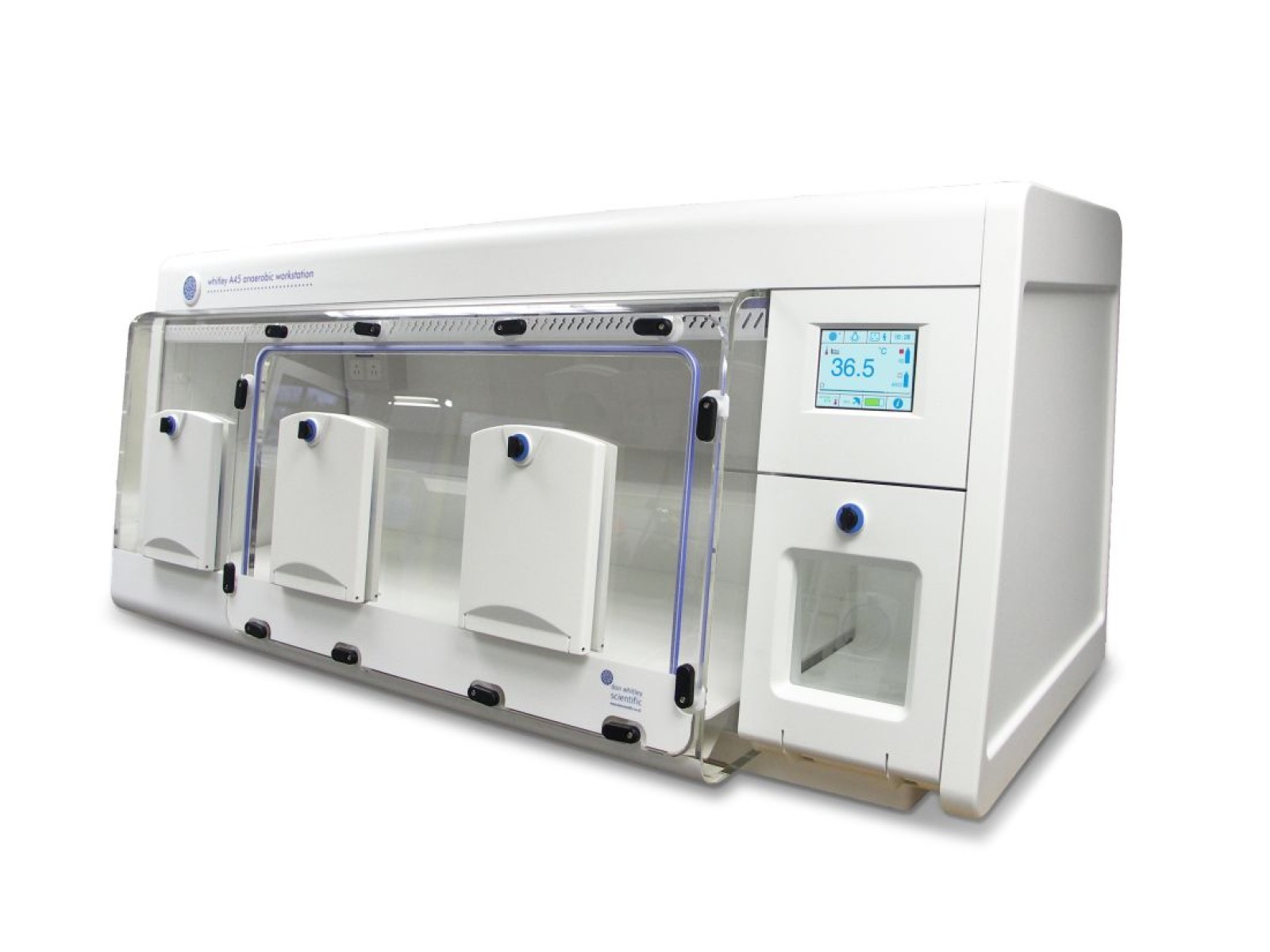

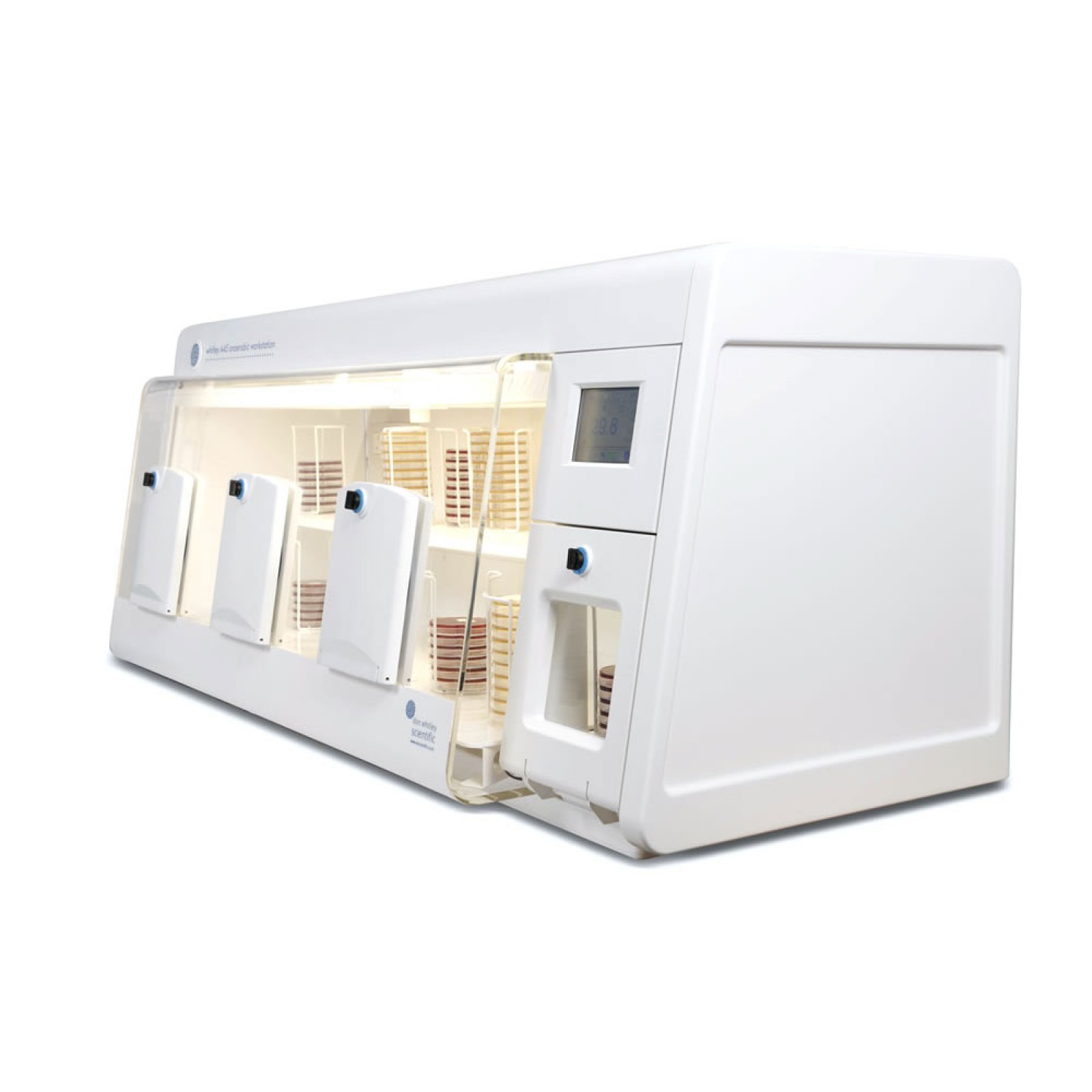

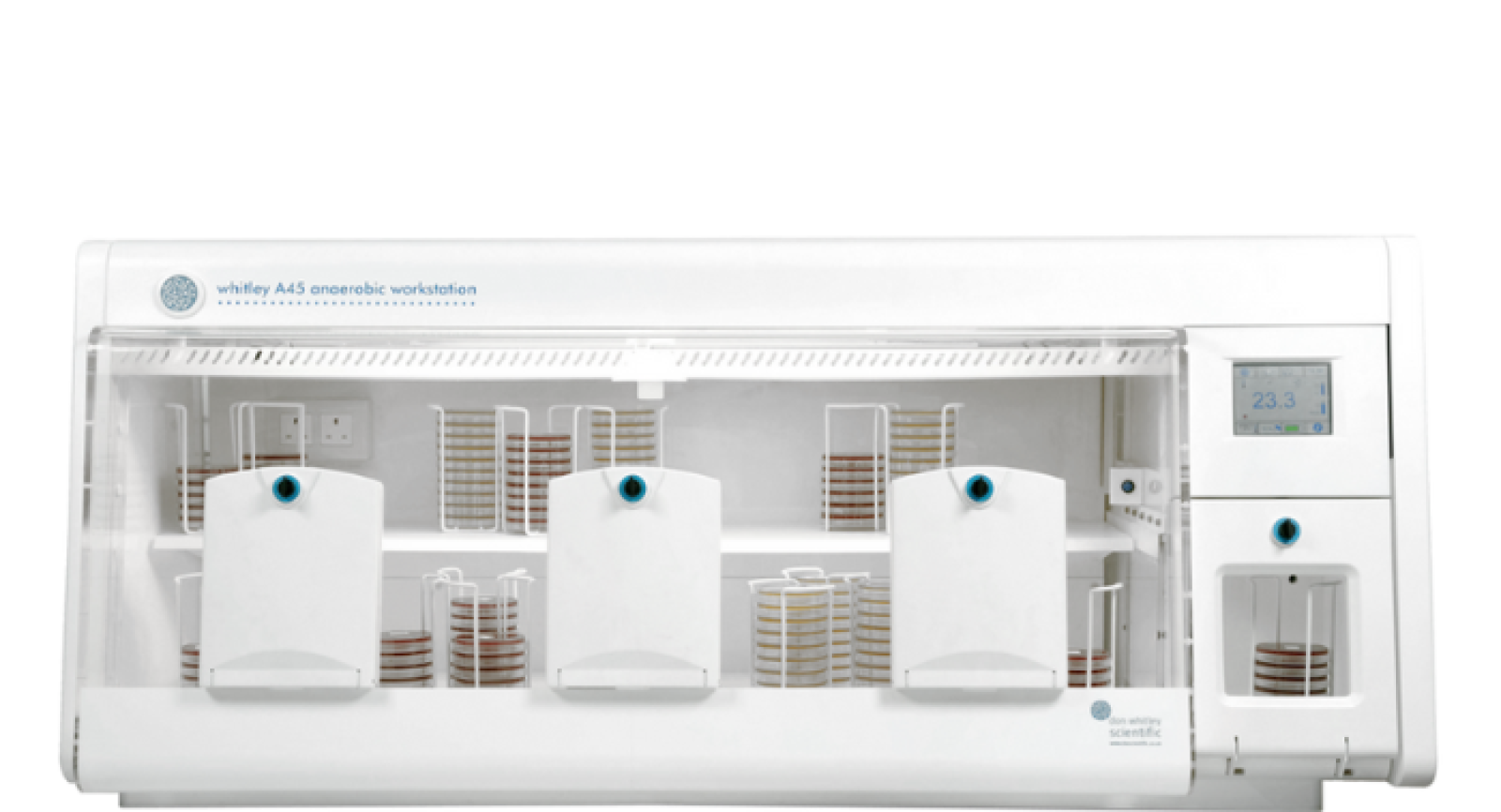

The A45 Workstation, like our other anaerobic workstations, enables the processing, incubation and examination of samples without exposure to atmospheric oxygen. This workstation has three ports for convenient user access to the entire incubation and working areas. The ports can be configured as:

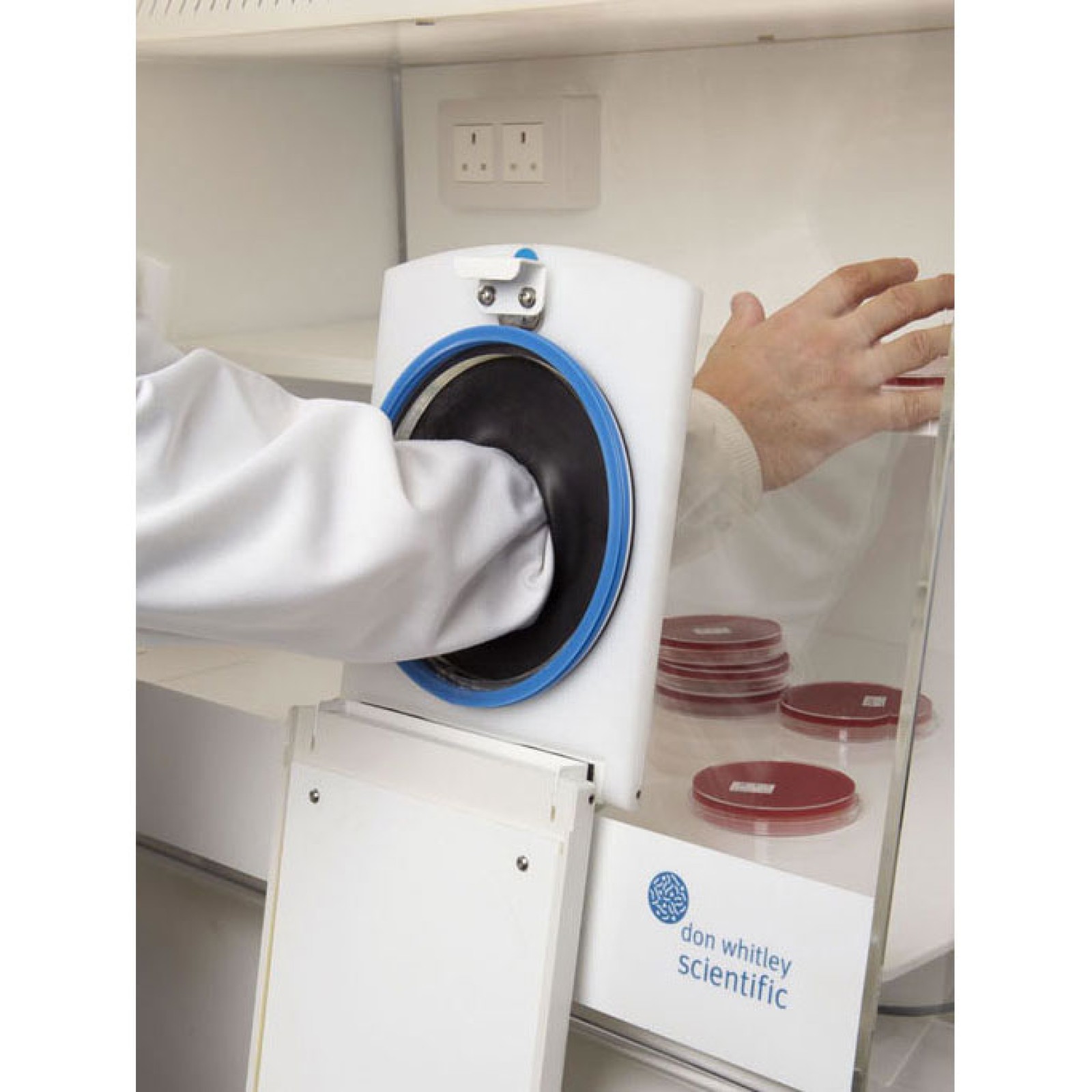

  • 3 x Instant Access Ports (fixed front)
  • 3 x conventional oval, sleeved ports (fixed front)

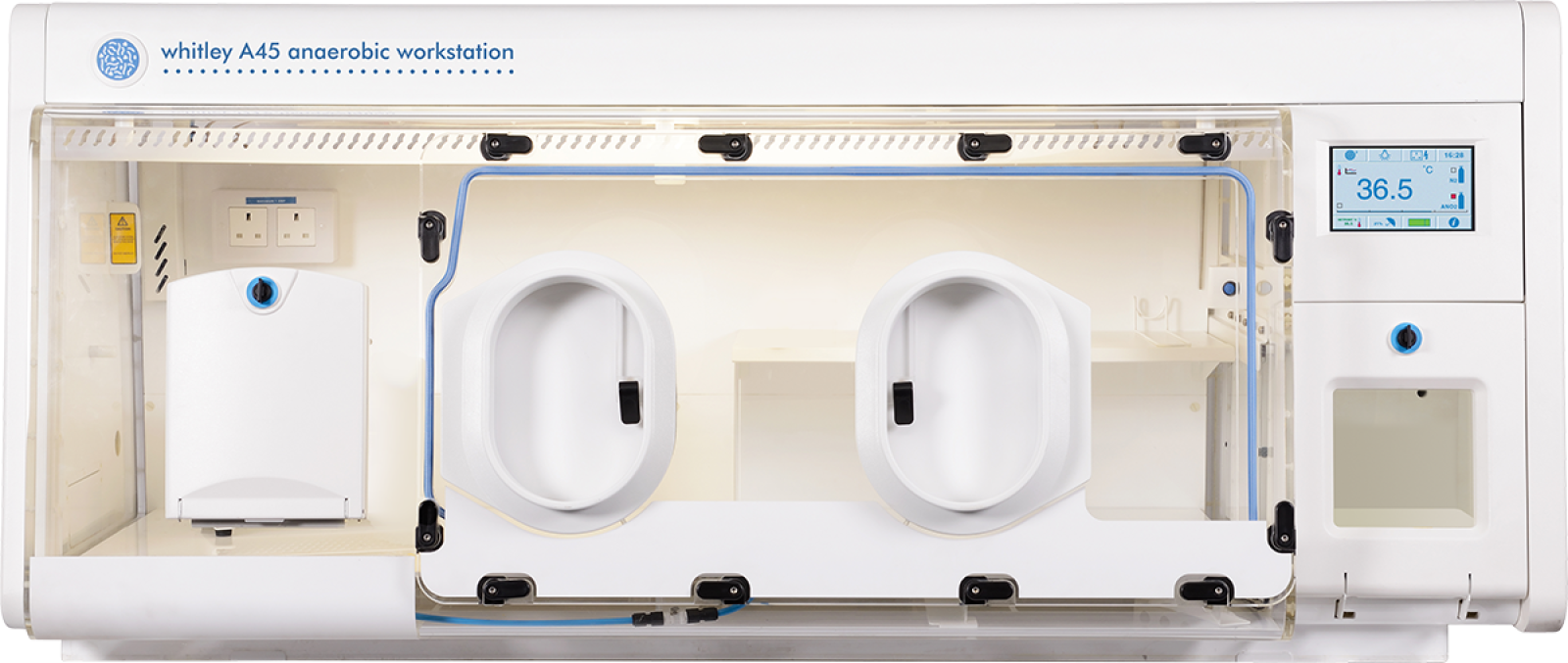

  • 1 x Instant Access Port on the left and 2 x Instant Access Ports as part of a removable front on the right.
  • 1 x Instant Access Port on the left and 2 x oval, sleeved ports as part of a removable front on the right.

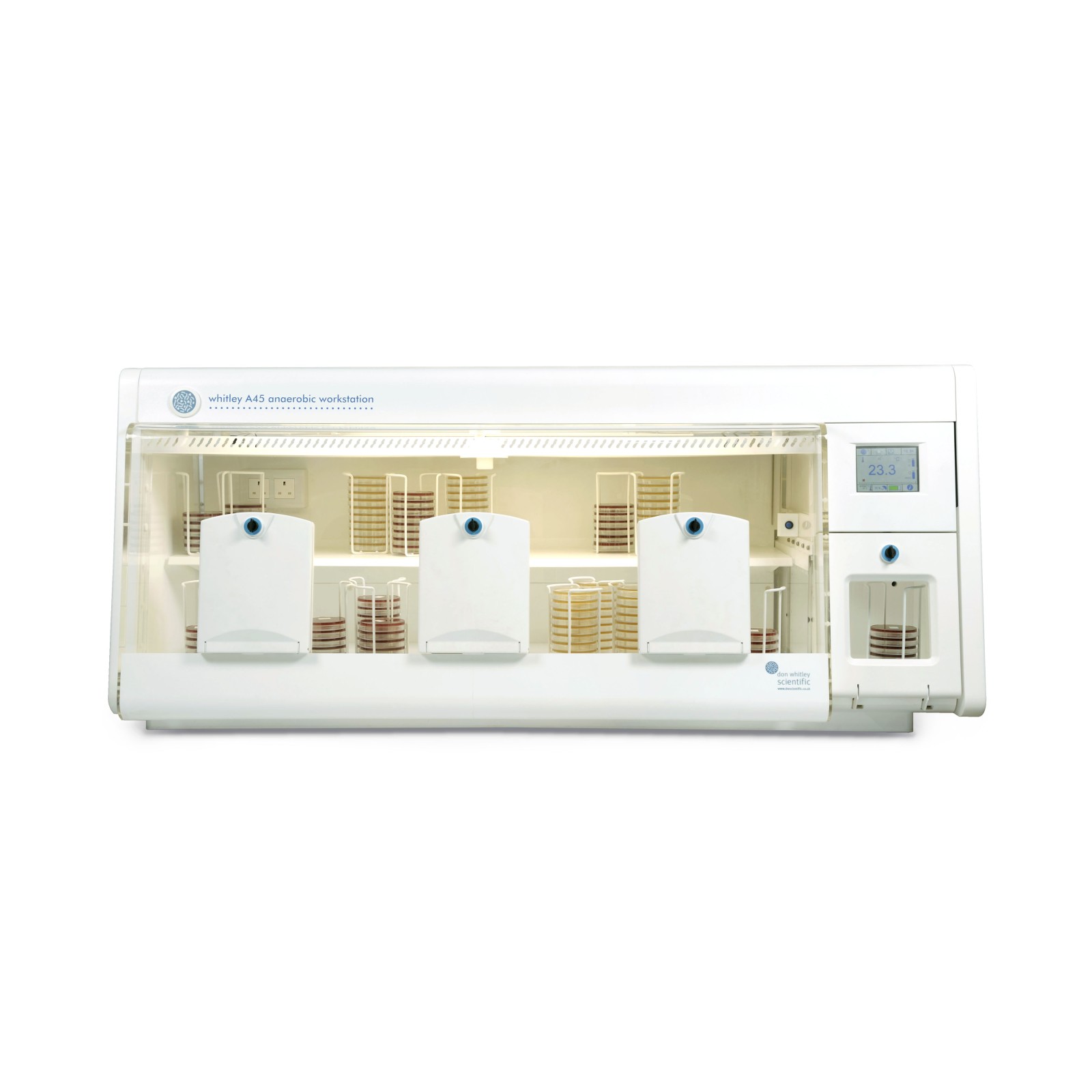

This workstation accommodates up to 780 x 90mm Petri dishes whilst still providing a generous working area. Options include an integrated anaerobic conditions and catalyst monitoring system with data download facility.

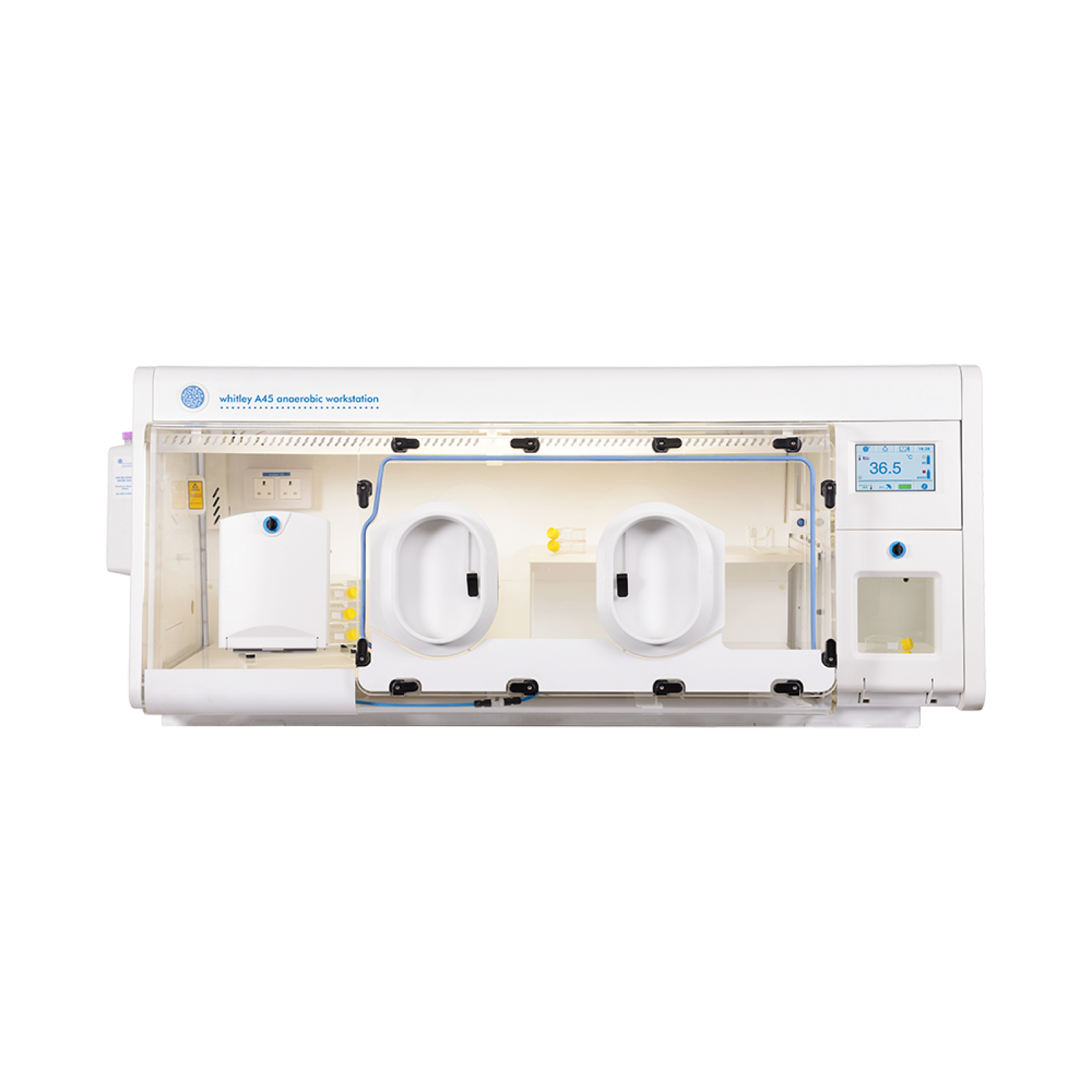

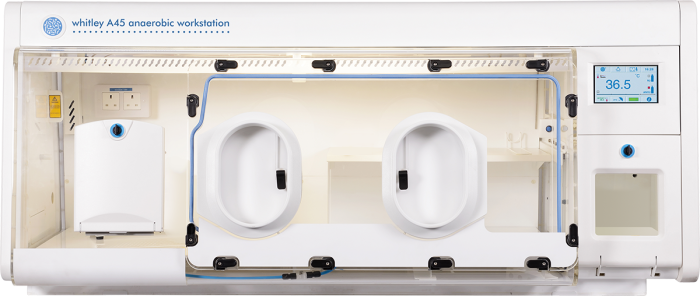

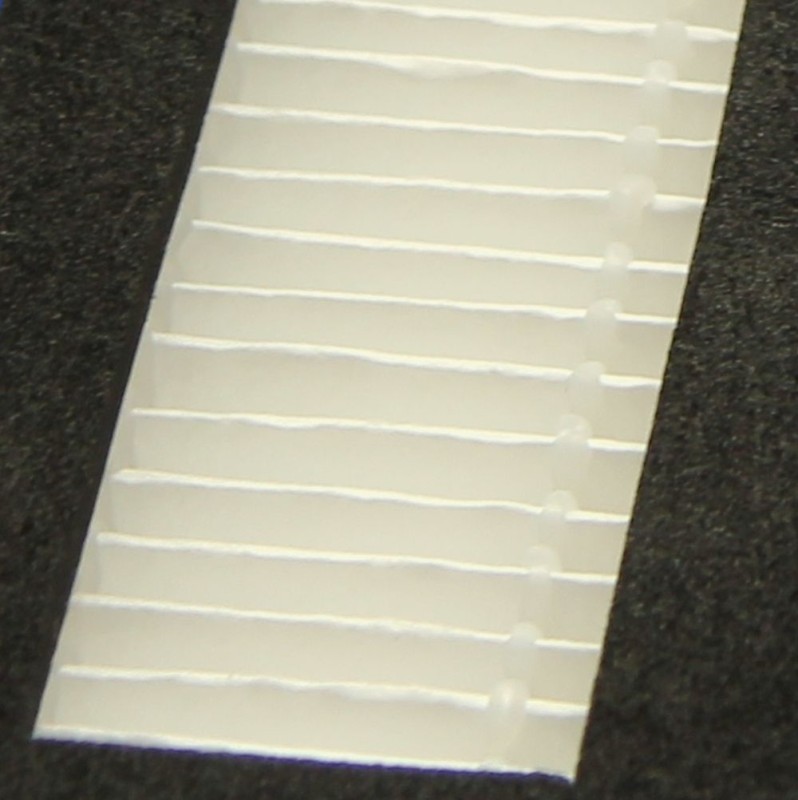

The A45 is available as an A45 HEPA, fitted with 3 x oval ports and the unique Whitley Internal HEPA Filtration System. All the atmosphere passes through the filter hundreds of times an hour, which ensures the chamber environment is cleaned quickly.

The A45 and A45 HEPA can also be purchased as 3-gas systems (TG), which run from separate cylinders of nitrogen, hydrogen and carbon dioxide. This version is particularly interesting if you need to reduce costs to a minimum so please ask about the Whitley A45TG Workstation. All 3-gas systems are fitted with 3 x oval, sleeved ports.

Sample manipulation within a secure anaerobic environment is now as easy as working aerobically at the laboratory bench.

Please Note: The Instant Access Porthole System is a DWS patented system (UK Patent No. EP2446015, German Patent No. 602010060130.7, USA No. 8695679)

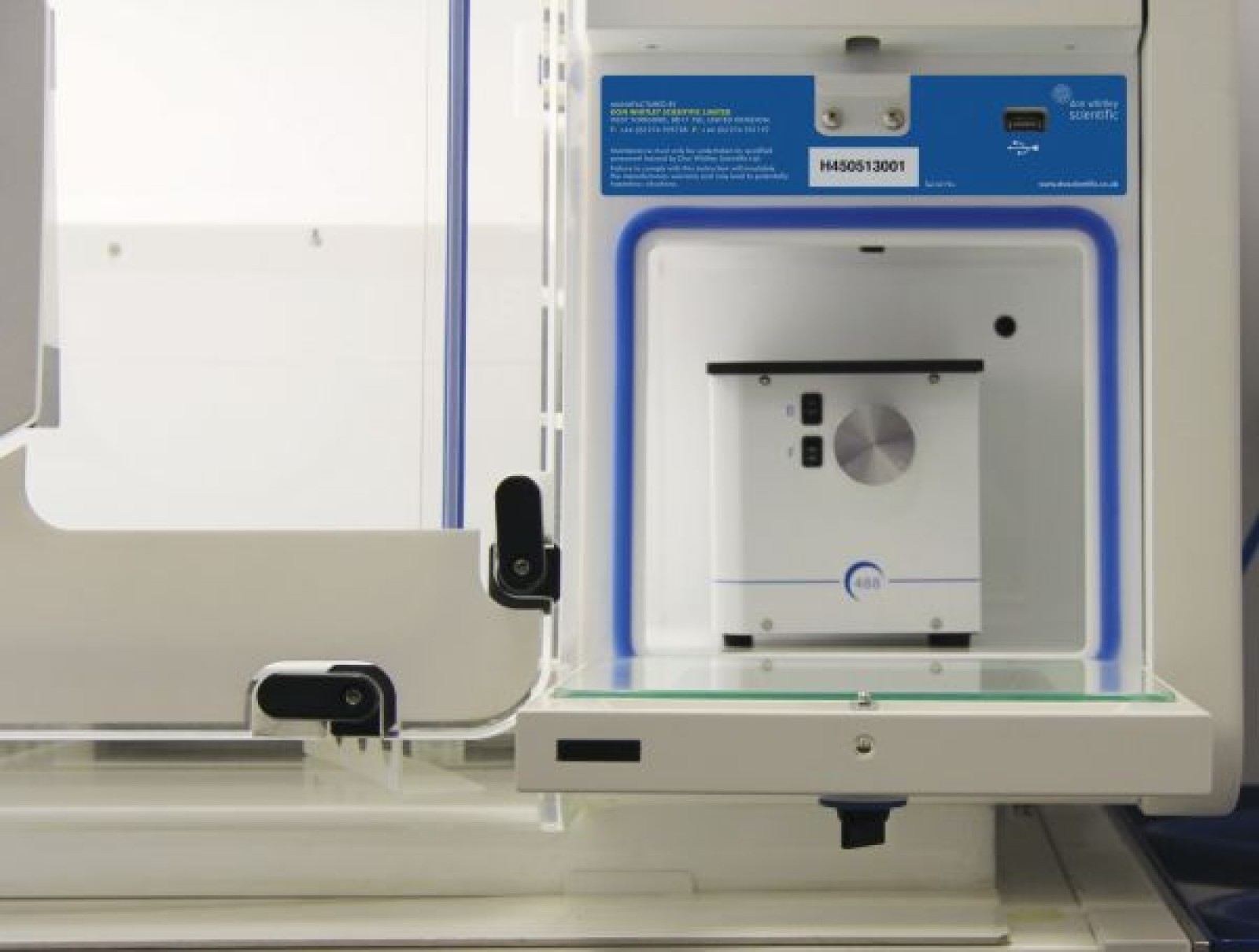

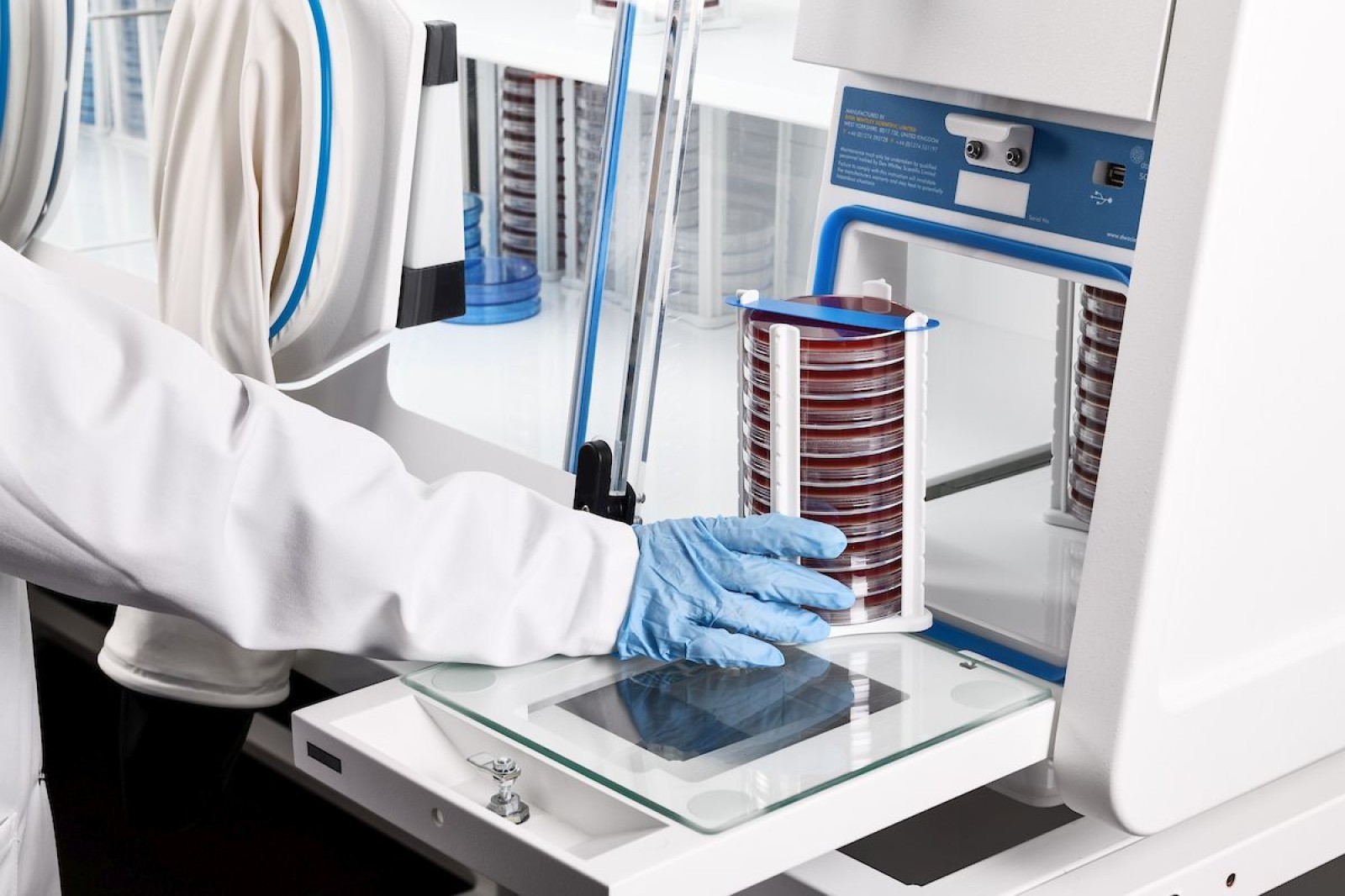

  • The built-in rapid airlock allows the transfer of plates in just 60 seconds.
  • A colour, touchscreen control panel for ease of use and for visual display of parameters such as temperature, humidity, and airlock cycle status.
  • Ethernet-enabled for remote access to touchscreen.
  • Optional removable front with instant access or traditional sleeved ports.
  • Available with a mixture of instant access ports and conventional ports to give you the best arrangement for your application.
  • Includes an automatic commissioning cycle to save you time and resources.
  • Optional accessories include the Automatic Gas Changeover Unit - never run out of gas again!

View Specification


Capacity (litres)
Capacity (petri dishes)
780 / 860
Airlock Capacity
40 plates via airlock
Airlock Size (litres)
Porthole System
Instant Access Ports (A45) or Manual Ports (A45 HEPA)
Gas Supplies
Auto Sleeve Gassing
Internal Mains Sockets
Storage Tray

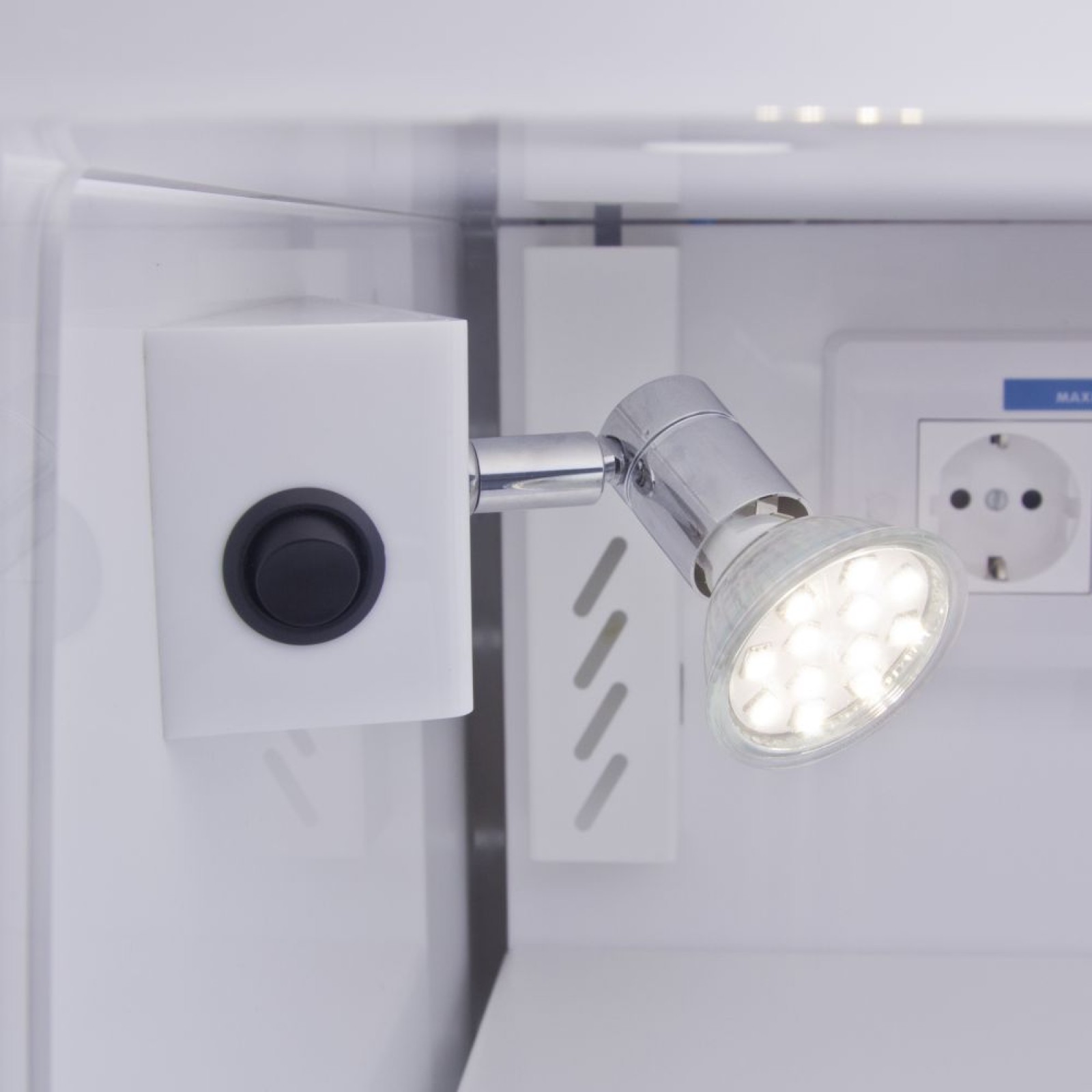

Inspection Lamp

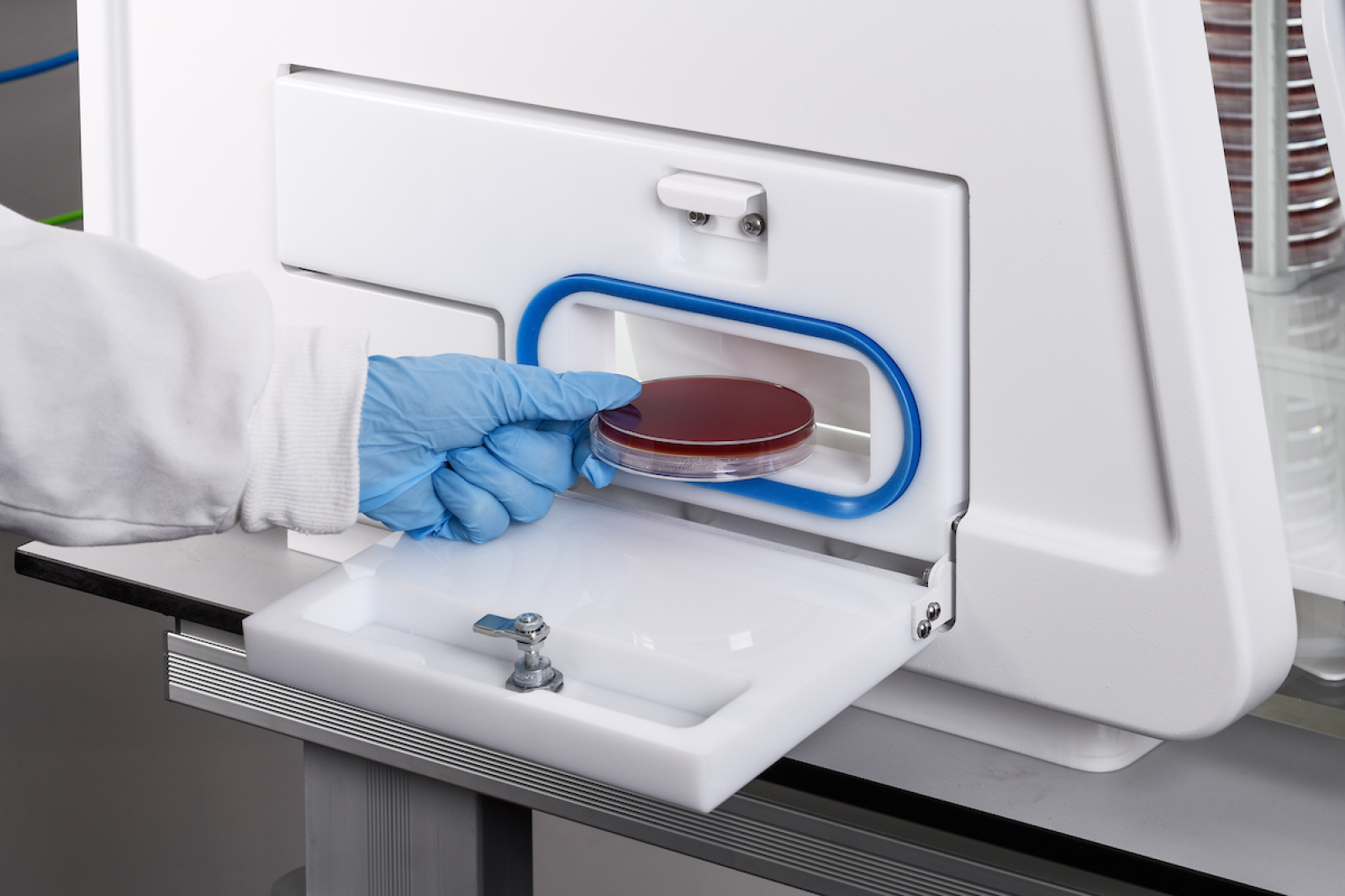

Single Sample Entry
AN02 Conditions Monitor
Data Logging
Airlock Cycle Time (seconds)
Standard 60 (Option to increase in 1min increments to 5mins)
Extra Cable Glands
Automatic Dehumidifier
Removable Front
Temperature Range
5°C above ambient up to 45°C
Touchscreen Control
Remote Access
Dimensions (W/D/H mm)
1660 / 720 / 710
Weight (lbs/kgs)
286 / 130
Whitley A55 Workstation

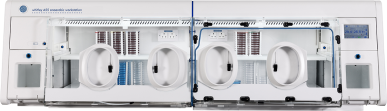

Need more space and two airlocks? The A55 might be the solution.

Whitley A55 Workstation
