Whitley H135 HEPA Hypoxystation

Perfect for accommodating items of laboratory equipment

Rollover Image to Zoom
  • Precise control of oxygen, carbon dioxide and nitrogen – provides flexibility in your research and confidence in your results.
  • The Whitley Internal HEPA Filtration System with optional Enhanced Biological Containment.
  • A removable front (fitted with two patented oval ports) to facilitate the transfer of large items of equipment for use inside the chamber.

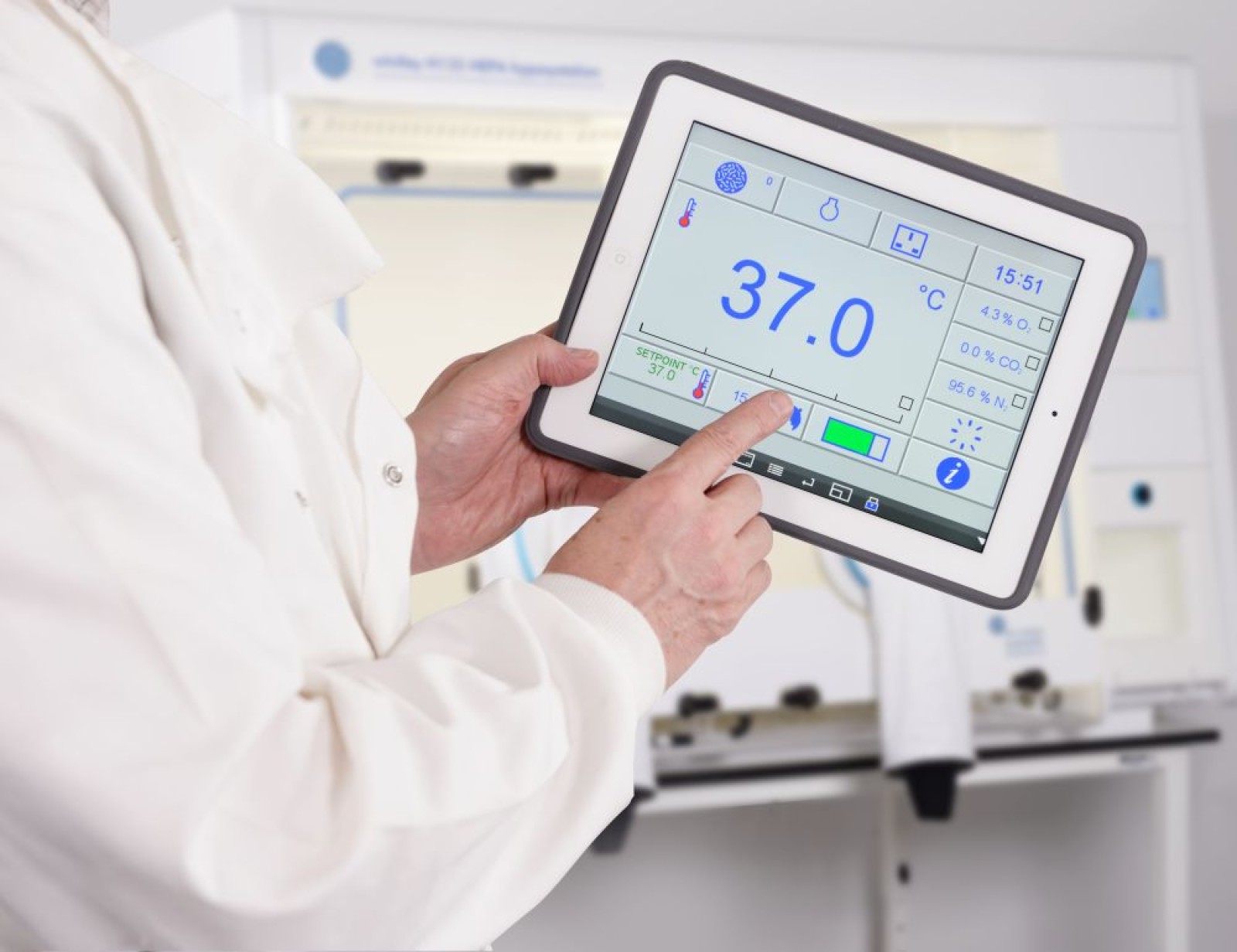

  • Innovative full colour touch screen that is Ethernet-enabled for remote access. Now you can log into your workstation when you are away from the laboratory.
  • Fully automated oxygen calibration routine (patent pending) – activated via the touchscreen with no need to touch or remove the sensor - saves time, no risk of user error and ensures the accuracy of your results.
  • Options Include the Whitley Automatic Humidifier – sterile, on-demand moisture addition.

View Specification

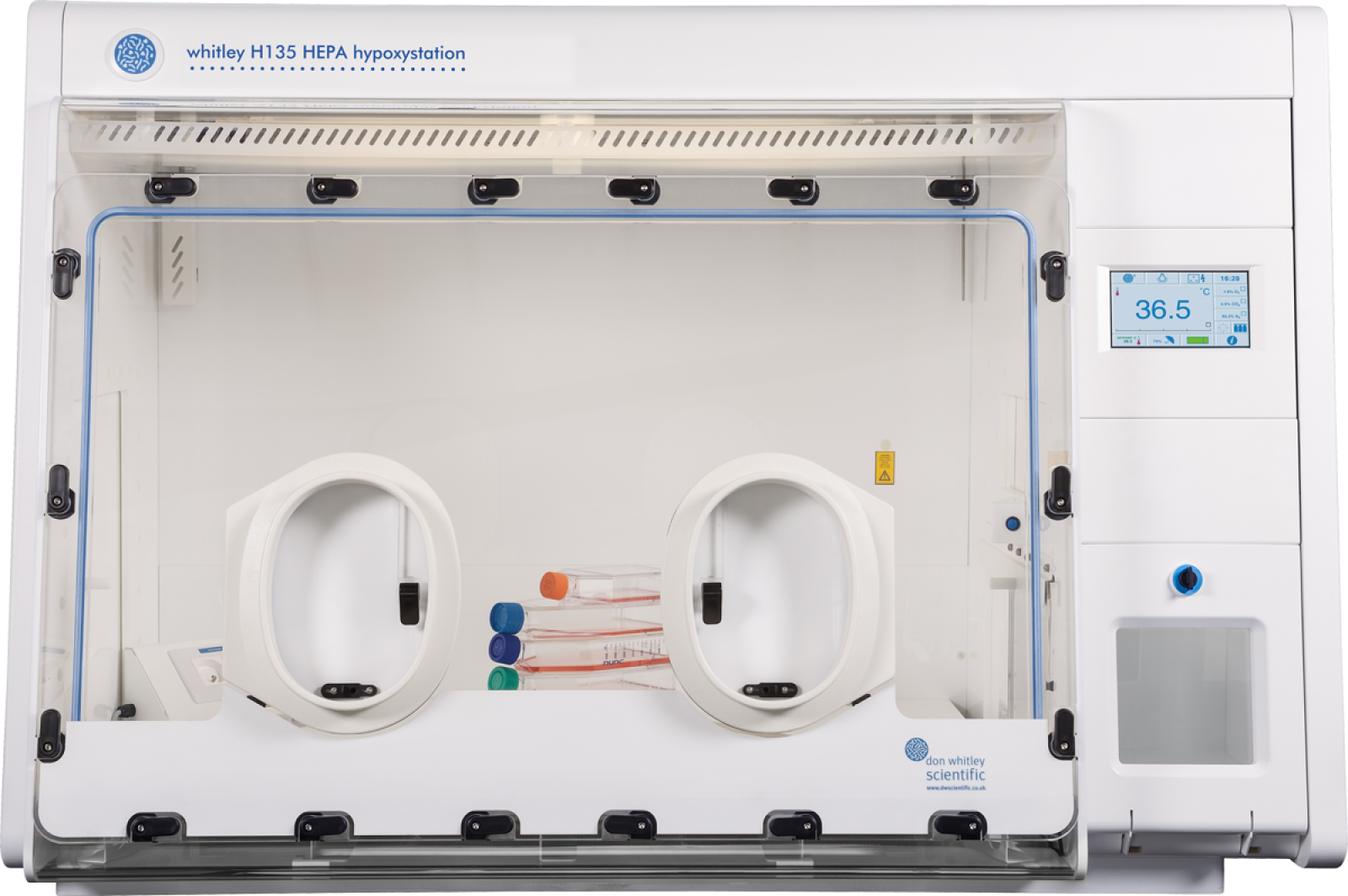

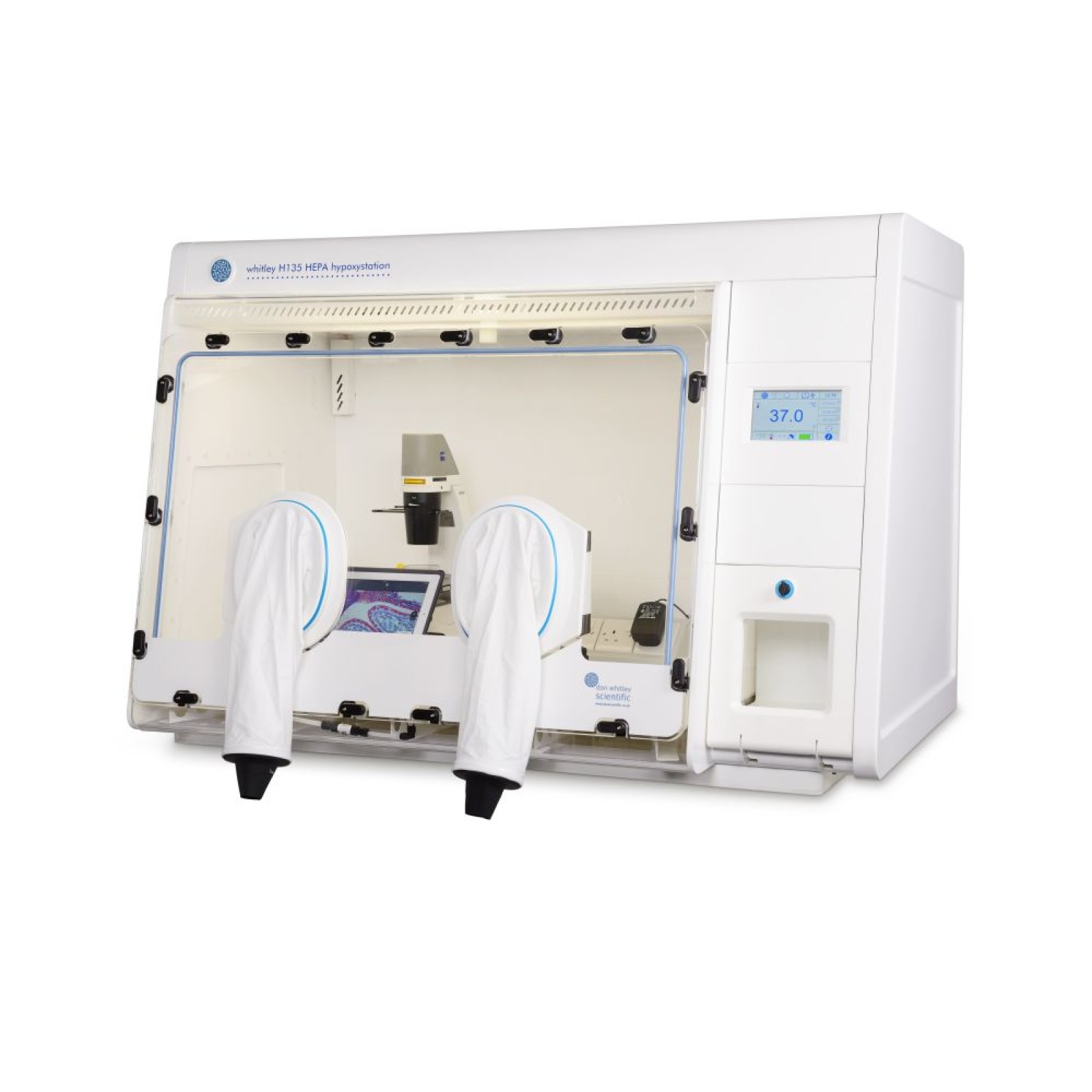

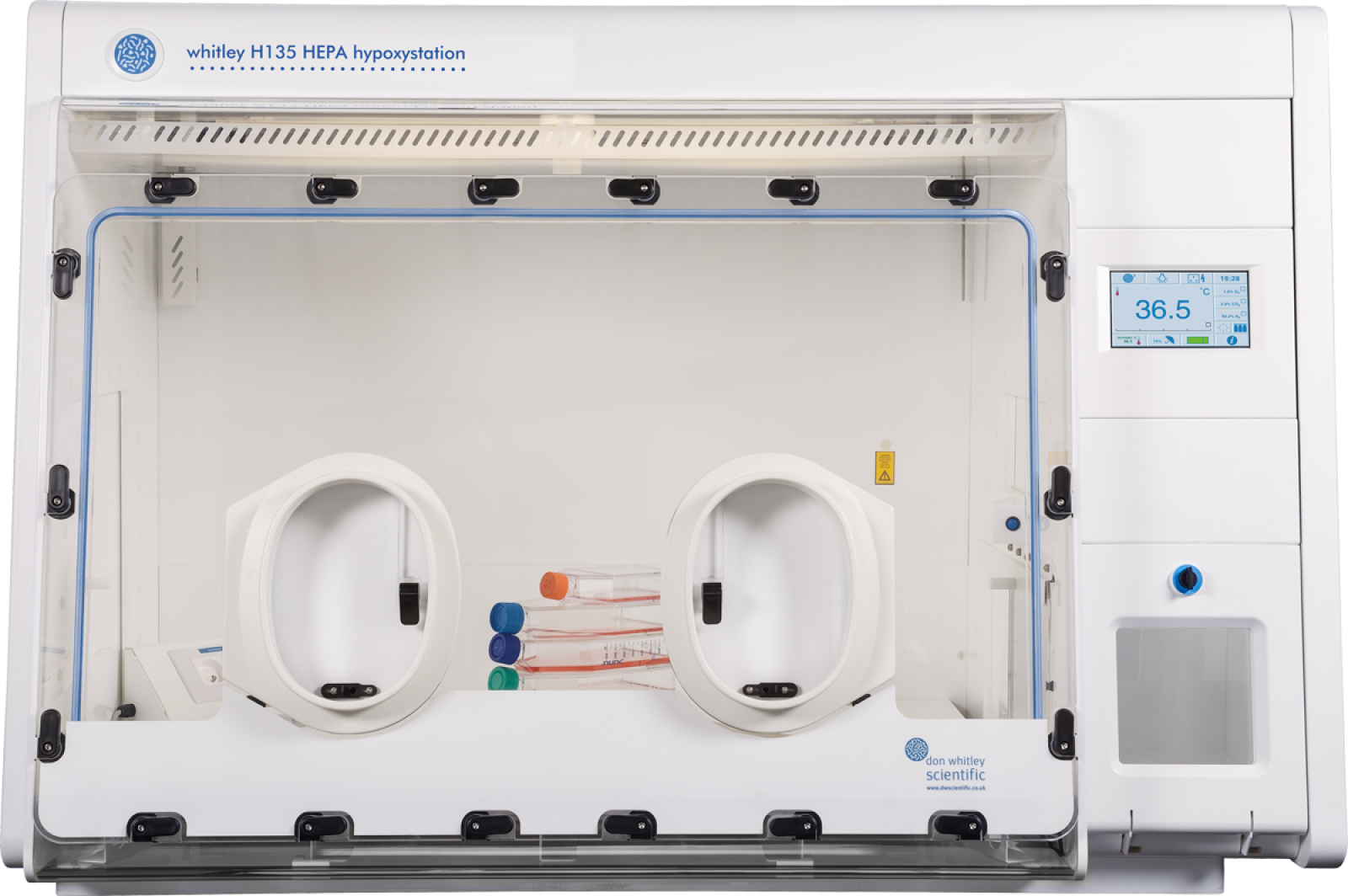

The H135 HEPA is the tallest, widest, deepest hypoxic chamber in the Whitley range. It has a usable internal volume of over 550 litres and can accommodate a variety of items of equipment such as live cell imaging devices, microscopes, plate readers, etc.

The generous internal height facilitates easy pipetting. All cell manipulations can be performed without removing them from your required hypoxic conditions. The entire cell culture incubator chamber is a working and incubation space.

This workstation provides precise environmental control whilst leaving plenty of room to work, incubate and conduct analysis. A rapid 12 litre airlock – no risk of compromising conditions inside the chamber (and it’s flushed with nitrogen as an additional cost saving).

For those who want to use a Seahorse XF Analyzer in their work, there is the option of connecting the H135 HEPA to a Whitley i2 Instrument Workstation.

View Specification

Capacity Litres
600.00
Port Airlock Capacity
Accommodates up to 44 x 96 well plates or 84 x T25 flasks
Airlock Size (litres)
12.00
Porthole System
Manual, oval ports
Gas Supplies
CO2 / N2 / Air
Footswitch
Wireless
Auto Sleeve Gassing
Available
Internal Mains Sockets
Available
Storage Tray
Available
Inspection Lamp
Available
Single Sample Entry
Available
Data Logging
Available
Airlock Cycle Time (seconds)
60
Extra Cable Glands
Available
Microscope
Contact Us
Automatic Dehumidifier
Included
Automatic Humidifier
Available
Removable Front
Included
Trolley Available
Available
Co2 Monitoring
Included
Vacuum Take Off
Available
Temperature Range
9°C above ambient up to 45°C
Touchscreen Control
Yes
Remote Access
Included
HEPA
As Standard
Dimensions (W/D/H mm)
1452 / 1056 / 993
Weight (lbs/kgs)
386 / 175
