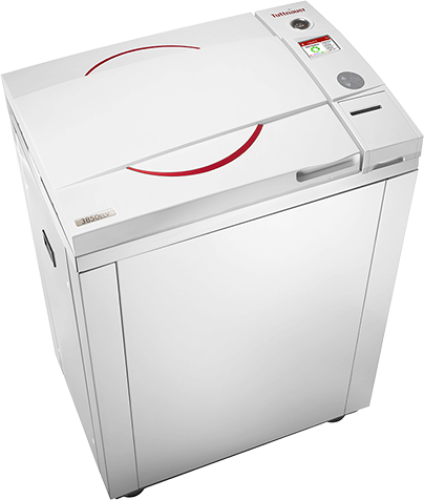

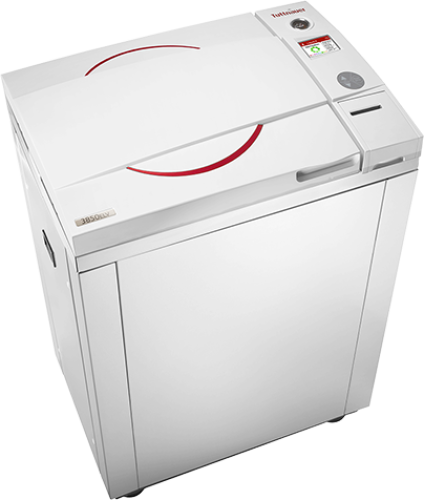

Tuttnauer 3850ELV Autoclave

With a 52 litre capacity, this autoclave can accommodate two batches of 8 x 500ml Erlenmeyer flasks

Rollover Image to Zoom

Tuttnauer autoclaves are specifically designed for laboratory sterilisation applications. They provide high quality, repeatable performance and documentation for quality assurance processes. The 3850ELV is a vertical, freestanding, top loading autoclave that comes complete with castors for ease of movement. It features an advanced multi-colour control panel.

The 3850ELV Autoclave features a state-of-the-art control system – up to 6 x temperature sensors and 4 x pressure sensors can be connected.

Quality compliance standards include ISO9001:2008; ISO13485:2003. 21 CFR 820 and IQ, OQ, PQ documentation is available.

For the built-in steam generation model, ask for details of the 3850ELVC-G.

If you need the benchtop model, see the 3840EL or if you need a slightly larger freestanding model, see the 3870ELV

Want a freestanding autoclave but don’t have a drain or water connection? Ask for details of the ELV-WR, a top loading autoclave that has a water reservoir that is filled manually. Only an electric power connection is needed. These autoclaves come in five different sizes, from 31 litres volume to 160 litres.

  • The 3850ELV has a 52-litre capacity – it can accommodate two batches of 8 x 500ml Erlenmeyer flasks or two batches of 18 x 250ml Schott-Duran flasks.
  • Chamber internal dimensions are 880 x 500mm and external dimensions are 730 x 1000 x 540mm (w x h x d).
  • A safety device prevents an operator from opening the door when the chamber is pressurised, and a cycle cannot start if the door is not properly locked.
  • A range of options are available to tailor your autoclave to your specific needs, including fast cooling (up to 75%), super-fast cooling (up to 90%), efficient air and moisture removal, efficient heating, complete drying and a biohazard and waste system.
  • Optional fully comprehensive maintenance and service contracts are available to prolong the life of your investment and reduce downtime. (Note: different arrangements apply in different countries).
  • Optional calibration and validation for UKAS.

View Specification

Specifications

Capacity (litres)
52.00
Dimensions (W/D/H mm)
730 / 540 / 1000
Weight (lbs/kgs)
253 / 115

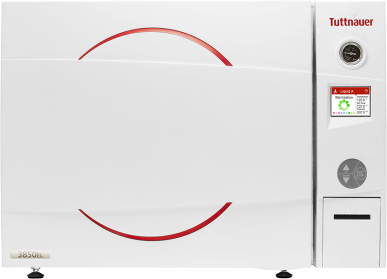

Tuttnauer 3850EL

Would you prefer a benchtop model?

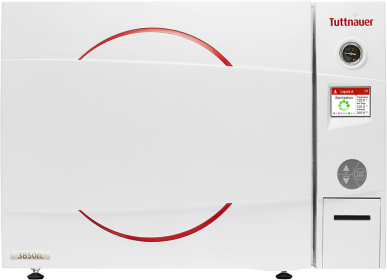

Tuttnauer 3850EL Autoclave
